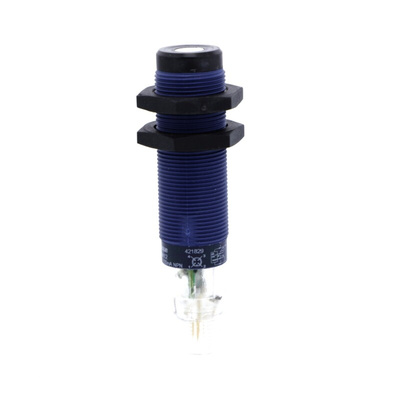

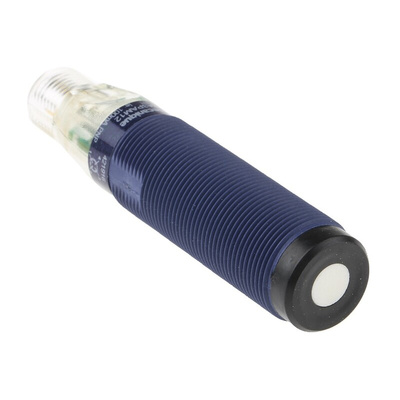

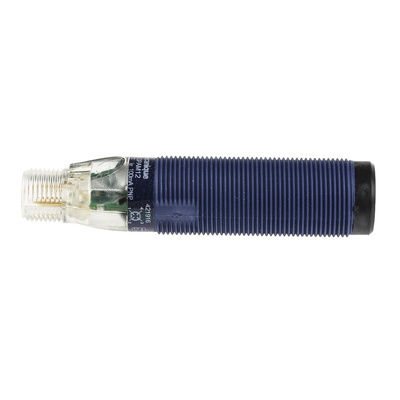

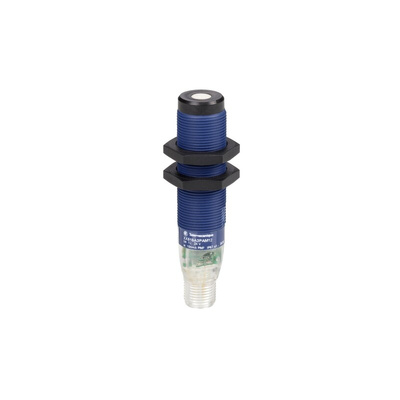

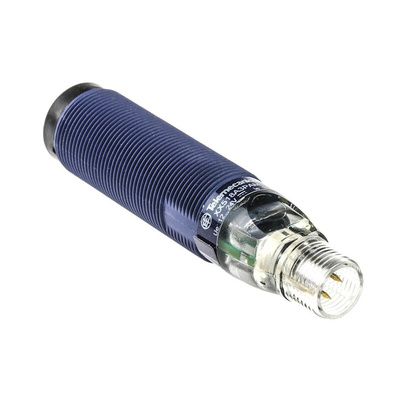

XX518A3PAM12, Telemecanique Sensors Ultrasonic Barrel-Style Proximity Sensor, M18 x 1, 50 → 500 mm Detection, PNP Output, 12, Датчик

Cylindrical Ultrasonic PNP (NO) - 0.5m Sn

IP67 rated
M18 cylindrical body
PNP switched output
Precise object detection of any material
Operating distance: adjustable using XXZPB100 (stock no. 612-2184)
Minimum object size to be detected: 2.5mm up to 150mm
Overall beam angle: 6°
Operating temperature range: -20 to +60 °C
Sensing face material: Epoxy
Body material: Valox®

Note

XX518A3PAM12 (stock no. 612-2229) requires Teach Button XXZPB100 (stock no. 612-2184) for setup.

Telemecanique Sensors Proximity Sensor, Plastic Housing, 24V DC Maximum Voltage - OsiSense XX Series - XX518A3PAM12

You need need to track objects through your industrial processes, this proximity sensor from Telemecanique Sensors keeps its eye on the ball. Thanks to its ultrasonic detection method, this capable piece of kit can pick out everything from solid metal or plastic components to levels of liquid, and all without making physical contact. This makes it a safe choice for setups with rigorous hygiene requirements or when dealing with delicate workpieces. Since colour is no obstacle to this high-performance gadget, you can also use it to detect or monitor glass objects.

• Wide operating temperature range of -20°C to +65°C for compatibility with extreme conditions
• Low 100mA switching current makes this an energy-efficient choice
• Waterproof IP67 rating means it's safe to use in areas where it's likely to get wet
• Standardised 4-Pin M12 connector is widely compatible for easy integration into your system

Applications

• Food and beverage processing
• Packaging machinery
• Automotive industry

What's the maximum sensing distance for this product?

This versatile device has a sensing range between 50 and 500mm, which you can adjust remotely using the handy teach push button.

OsiSense

Osisense ultrasonic sensors are ideal for use in many applications as detection of any material including metal, plastic, liquid and any colour is possible, the main types of applications are:

Food and Beverage processing.

• For liquid level detection without contact with the liquid


• Detection of powders


• Detection of glass bottles

Packaging.

• Detection of objects passing on a conveyor.

Automobile industry.

• Monitoring presence of car windscreens.
