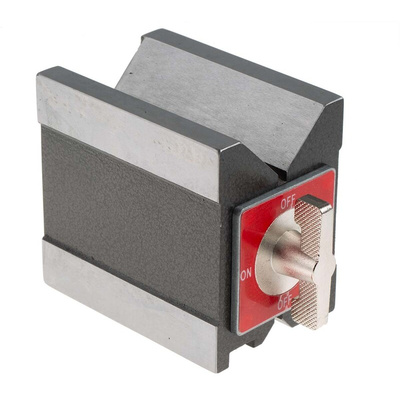

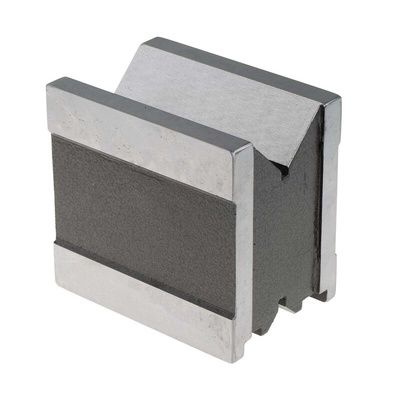

RS PRO Magnetic V-Block, 12 → 60mm Capacity

RS PRO Magnetic Prisma en V, 12 → 60 mm Capacity

This RS PRO V block is an ideal solution if you need to hold objects in place for drilling or milling operations. It has two rectangular sides which form a V-shaped dip at the top with a deep groove cut into it to insert your worked piece.

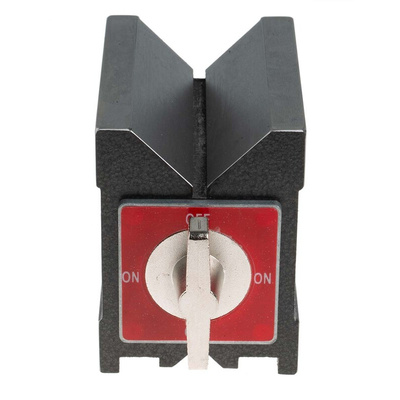

The block features a magnet, which you can switch on and off with a handy dial on the side. Magnetising the base of the block will allow it to remain firmly attached to any ferrous surface, while the upper groove can be magnetised to provide a more secure grip on the object you're machining. This gives you extra stability when you're working, for safer operation and more accurate results. It's ideal for use in industrial manufacturing environments, as well as workshops and automotive applications.

Features and Benefits

• Magnetic clamping
• Clamping capacity of 12 mm → 60 mm
• Dimensions of 105 (height) x 255 (length) x 75 mm (width)
