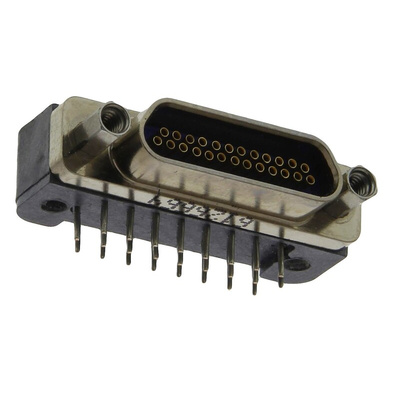

MWDM2L-25SCBRP-.110, Glenair MWDM 25 Way Right Angle Through Hole D-sub Connector Socket, 2.54mm Pitch, Разъем

90° Metal Shells

0.100 inch x 0.100 termination grid
0.02 inch diameter copper termination tails
Horizontal narrow profile, right angle mounting
Jackposts supplied installed

Standards

MIL-C-83513

Micro D 0.05inch Pitch

Designed for use in electronic systems in commercial and military aerospace, military land and sea and industrial/telecommunication applications, the Micro D connector provides exceptional mechanical and electrical integrity, whilst operating in extreme vibration and environmental conditions.

High Performance, Gold Plated Twist Pin Contact System
3 Amp Contact Rating
High Density .050” Contact Pitch
RoHS Compliant
High Performance Liquid Crystal Polymer moulded connector housing with trapezoidal polarisation.

Datasheet
