MRM6061, Glenair Jack Screw D-Sub Connector

Jack Screw & Jack Post

Stainless steel jackscrew and jackposts used for locking coupled Micro D connectors. Suitable for both metal and plastic types, including preterminated and solder bucket connectors

Jackposts are supplied in bags containing 2 jackposts , 2 washers and 2 hex nuts
Jackpost length is 12.45mm

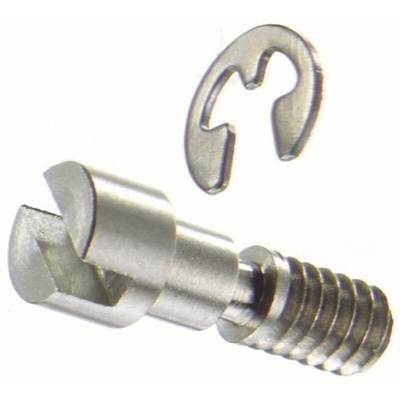

Jackscrews are supplied in bags containing 2 jackscrews and 2 c-clips
Suitable for all connectors from 9 to 51 way

Standards

Mil-PRF-83513,
BS9523-F0002

Micro D 0.05inch Pitch

Designed for use in electronic systems in commercial and military aerospace, military land and sea and industrial/telecommunication applications, the Micro D connector provides exceptional mechanical and electrical integrity, whilst operating in extreme vibration and environmental conditions.

High Performance, Gold Plated Twist Pin Contact System
3 Amp Contact Rating
High Density .050” Contact Pitch
RoHS Compliant
High Performance Liquid Crystal Polymer moulded connector housing with trapezoidal polarisation.

Datasheet
