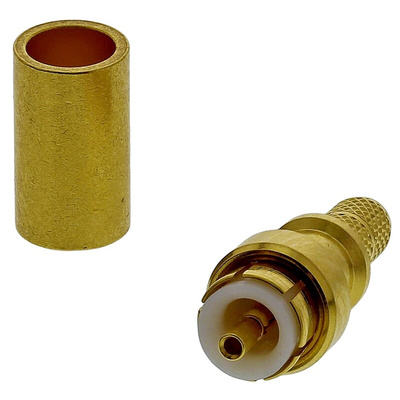

11_MMBX-50-2-1/111-NE, Huber+Suhner, Plug Cable Mount MMBX Connector, 50Ω, Crimp Termination, Straight Body

MMBX Straight Cable Plug Connector

Hubner + Suhner MMBX cable connectors are for applications requiring cable to board interfacing, durable MMBX cable connectors with around 100 mating cycles and low engagement force.

Note

Suitable cables K_02252_D, ENVIROFLEX_316_D, G_02232_D

Standards

MIL-STD-202, Method 107 G, Condition B1; MIL-STD-202, Method 106 F; MIL-STD-202, Method 101, Condition B; MIL-STD-202, Method 204 D, Condition A

HUBER+SUHNER MMBX

Modularity with a minimum space requirement is demanded for existing and new generations of cellular technology systems (GSM 900 / 1800 / 1900, PCS, WCDMA, UMTS). In order to reduce the variety of products and to achieve standardised systems (modularity), the MMBX series contains a range of board and cable connectors which require a minimum of space. It offers all the necessary characteristics to obtain a unified design of the various systems.

11 MMBX 50-2-1 Dimensional Drawing

Assembly Instructions 27351

11 MMBX 50 -2-1/111 Data Sheet
