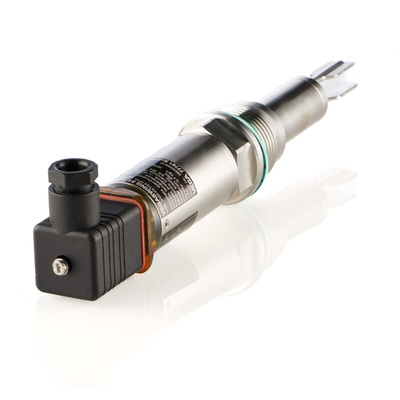

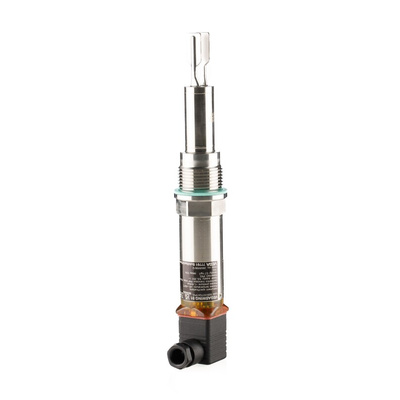

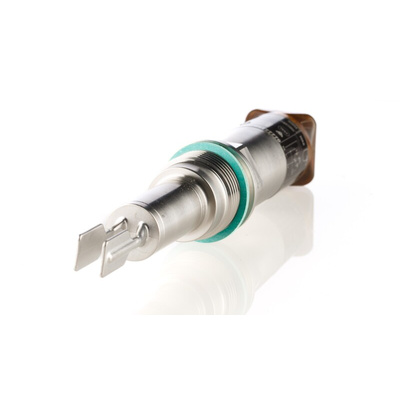

SG51.XXTGATPVL, Vega VEGASWING 51 Series, Tuning Fork Horizontal Mounting Level Probe PNP Output

Vega Vibrating Level Switch

The Vega universal vibrating level switch for liquids has PNP transistor output. This is independent of the mounting position, it detects the limit level reliably with millimetre accuracy. This can be used as an empty or full detector, as approved overfill protection, dry running protection or pump protection in vessels and pipelines. It is an affordable solution with maximum reliability and safety.
Note:
This is the manufacturer's referral for the VEGASWING 71AVibrating Liquid/Solid Level Probes – Squings
All of these probes are maintenance-free and have an external LED switch status indication

Features and Benefits

The supply voltage ranging from 10VDC to 55VDC
Process fitting for thread is G A, G1 A, NPT or 1 NPT and hygienic fittings is Tri-Clamp 1", Tri-Clamp 1", bolting DN 25 PN 40, bolting DN 40 PN 40, SMS

Precise and reliable function due to product-independent switching point
Minimum time and cost expenditure simple setup without a medium
High chemical resistance 316L stainless steel housing and switch point of 104mm
High repeatability switching
Unaffected by product density, conductivity, dielectric constant or viscosity (up to 10,000 mPa)
Process fitting / Material: Thread G1 PN64, DIN3852-A/316L
Maximum power consumption is 0.5W
Electronics: Transistor PNP 9.6VDC to 35VDC
Electrical connection/Protection
Switching point: with extended switching point
Operating temperature ranges between -40°C and 150°C

Applications

Small level switch version with stainless steel housing
Point level detection for bilge and leakage monitoring
Oil tank point level detection in the rotor gearbox

Certifications

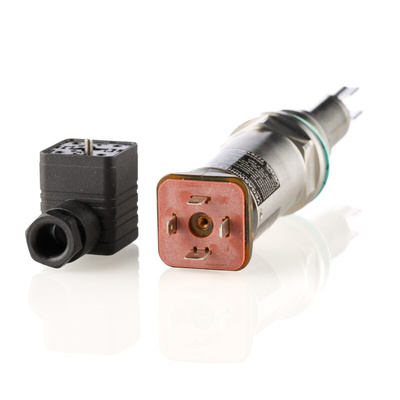

IP67 rated (Valve plug termination)
IP65 rated (Valve plug)
CE certified
