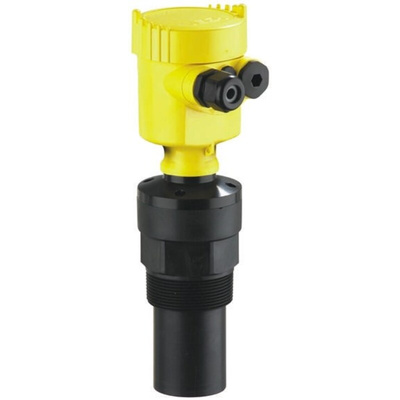

SN62.CXAGHKMX, Vega VEGASON 61 Series Ultrasonic Level Probe, Plastic Body, ATEX-Rated

Vega Ultrasonic Level Sensor

The Vega compact ultrasonic liquid level sensor has an analogue current rating of 4mA to 20mA HART output and it is used for continuous measurement. Its measuring range is from 0.4m to 8m for liquid and 0.4m to 3.5m for solid. This sensor is also suitable for the detection of bulk solids in small vessels or silos. The non-contact measuring principle is unaffected by this product’s features and allows setup without a medium.

Features and Benefits

Price-favourable solution for simple applications
Maintenance-free operation through non-contact measuring principle
Process material is thread G2A/PVDF
Reliable measurement, independent of product features
Transducer of PVDF with EPDM seal and integrated temperature sensor for correction of the running time
ECHOFOX signal processing with fuzzy-Logic
Without adjustment with PLICSOM
Protection is cable entry M20 x 1.5, without plug connection
Measurement is independent of density, opacity, conductivity or dielectric constant of liquid

Applications

Liquids in average-size storage vessels or open basins
Detection of bulk solids
Level measurement in a standpipe
Level measurement in basins
Industrial use in water and waste water sector
Level measurement and point level detection in the storage tank for wet strength agent

Certifications

ATEX
IEC
Shipbuilding
FM
CSA
GOST
PTB 03 ATEX 2213X
IP66/IP68 (0,2bar) rated
IP66/IP67 rated
IP66/IP68 (1bar) rated
