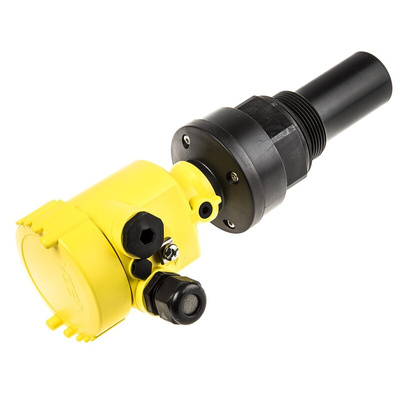

SN61.CXAGHKMX, Vega VEGASON 61 Series, Ultrasonic Vertical Mounting Level Probe, ATEX Rated

VEGASON 61 & 62 Ultrasonic Level Sensor

Compact ultrasonic sensor for continuous level measurement. Suitable for the measurement of liquids and solids in virtually all industries, particularly in the water and waste water sector.

Transducer of PVDF with EPDM seal and integrated temperature sensor for correction of the running time
ECHOFOX signal processing with Fuzzy-Logic\t\t\t\t
Adjustment with PLICSOM (468-3514), HART handheld or PC (not supplied)\t\tProtection: IP66/IP67, cable entry M20 x 1.5, without plug connection\t\t
Measurement is independent to density, opacity, conductivity or dielectric constant of liquid\t
PLICSOM display/programming unit and clear cover are available separately, see stock nos.: 468-3514, 468-3508 & 493-6868\t

Certificate No.: PTB 03 ATEX 2213X
Group & Category: II 1G, 1/2G, 2G EEx ia IIC T6\t\t\t\t\t

Vegason 61/62 Level Transmitter Data Sheet
