V61B5D7A-XA090, Norgren 5/2 Pneumatic Solenoid Valve - Pilot/Spring G 1/4 V61 Series, Клапан

IMI Norgren Pneumatic Solenoid Valve, Pilot/Spring Actuation Type, 1300L/min Maximum Flow Rate - V61 Series - V61B5D7A-XA090

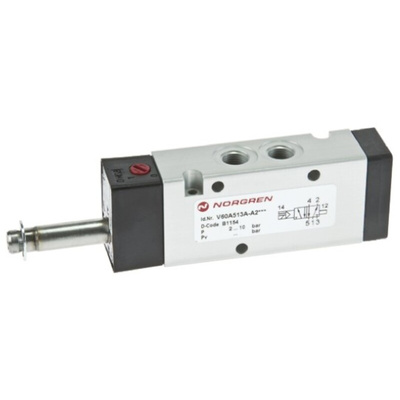

When it comes to precision control over your pneumatic system, this 5/2 solenoid valve from IMI Norgren is a small wonder. Despite compact dimensions of 130 (L) x 40 (W) x 25mm (D), this miniature marvel punches above its weight, delivering an impressive 1300L/min flow rate. For energy-efficient performance, it's internally piloted, which reduces its power consumption to just 2W. High-strength aluminium makes for a robust yet lightweight housing material, so you can rest assured this device is easy to handle and won't strain your equipment.

• Operating pressure range between -0.9 and 10 bar for versatility
• Standard G1/4 port fitting means it's widely compatible with standard equipment
• Manifold system makes installation quick and easy

Applications

• Medical equipment
• Conveyor belts
• Transportation industry

Can this product cope with extreme temperatures?

Yes, as it's designed to withstand the stresses of heavy-industrial settings, the valve operates comfortably at temperatures between -10°C and +50°C. One thing to watch out for, though – the air supply must be dry enough to avoid ice formation below +2°C.

V60-63 Series Technical Data Sheet

V60 … V63 Series Valves Datasheet
