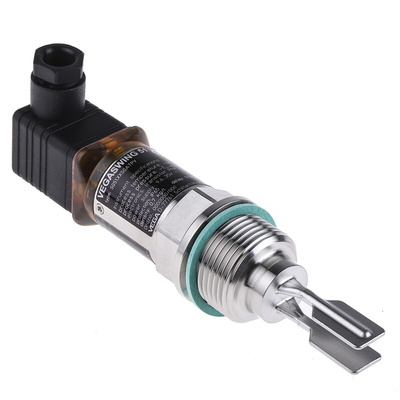

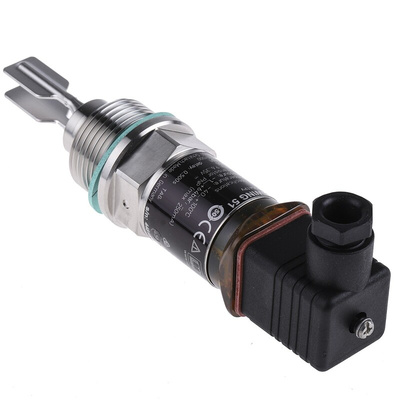

SG51.XXSGATPV, Vega VEGASWING 51 Series, Tuning Fork Horizontal Mounting Level Switch PNP Output

Vega Vibrating Level Switch

The Vega universal vibrating level switch for liquids has PNP transistor output. It detects the limit level reliably with millimetre accuracy. This can be used as an empty or full detector, as approved overfill protection, dry running protection or pump protection in vessels and pipelines. It is an affordable solution with maximum reliability and safety. This can be used as an empty or full detector, where it reliably detects limit level to within millimetres. Vibrating Liquid/Solid Level Probes – Squings.
All of these probes are maintenance-free and have an external LED switch status indication.

Features and Benefits

Operating voltage ranging from 9.6VDC to 35VDC
Process fitting for pipe thread, cylindrical is G A, G A, G1 A and American pipe is NPT, NPT, 1 NPT

Precise and reliable function due to product-independent switching point
Low maintenance costs
Minimum time and cost, simple setup without a medium
Process fitting material is Thread G1 PN64, DIN3852-A/316L
Operating temperature ranges between -40°C and 100°C
Electrical connection/Protection
High-quality design and build quality
Accurate and reliable with integral self-monitoring
Unaffected by product density, conductivity, or viscosity (up to 10 Paos)
High corrosion resistance, 316 stainless steel housing and fork
Ultra-compact, 40mm fork and housing design
Maximum current is 250mA

Applications

Industrial use
Point level detection for bilge and leakage monitoring
Oil tank point level detection in the rotor gearbox

Certifications

IP67 rated (Valve plug termination)
IP65 rated (Valve plug)
CE certified
