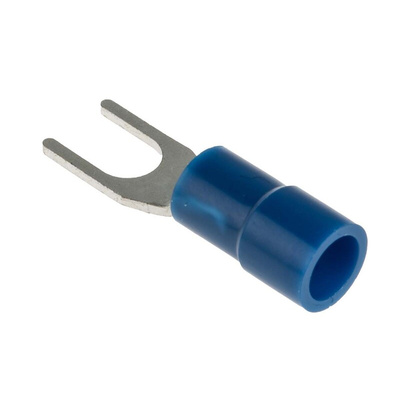

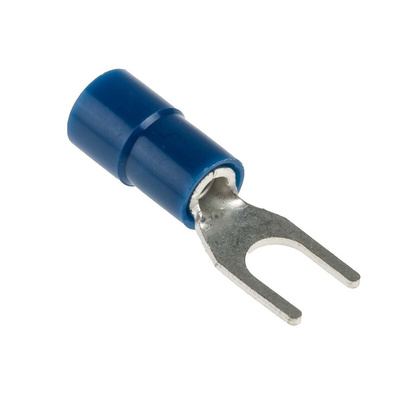

RS PRO Insulated Crimp Spade Connector, 1.5mm² to 2.5mm², 16AWG to 14AWG, 4.3mm Stud Size Vinyl, Blue

RS PRO Insulated Crimp Spade Connector, 1.5 mm² to 2.5 mm², 16 AWG to 14 AWG, M4 Stud Size Vinyl, Blue

Looking for a secure way to connect electrical wires when repairing or installing cable assemblies? This RS PRO insulated crimp spade connector makes it easy to link your signal. Simply insert the stranded wire into the tube and then connect the fork using screws.

This crimp spade terminal is colour-coded blue to correspond to the size of the wires it's used with, which must be in the range of 1.5 mm² and 2.5 mm². The connector is made from copper with tin plating, so it's an effective conductor. It has a spade thickness of 0.8 mm, is 6.4 mm wide and 22 mm long overall. The connector has an M4 stud size, which corresponds to a terminal diameter of 0.4 mm.

As part of the tried and trusted RS PRO range, this connector has been rigorously tested for both safety and reliability.

Features and Benefits

• Crimp spade connector


• 14 to 16 AWG (American Wire Gauge)


• Tin contact plating


• Copper contact material


• Blue vinyl insulation


• Suits a wire size range of 1.5 mm² to 2.5 mm²


• Overall length of 22 mm


• Width of 6.4 mm


• Spade thickness of 0.8 mm


• M4 stud size (0.4 mm diameter terminal)

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Small Pack Size

Per Unit, RS stock no: 613-9435

Large Pack Size

RS stock no: 270-7659

Approvals

UL (E125401)

Certification

Certification

Certification

Certification

Dimensional Drawing

RS PRO Kit Datasheet
