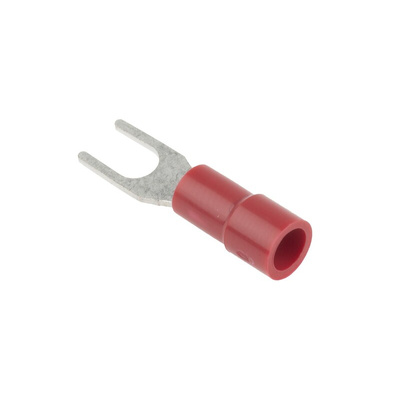

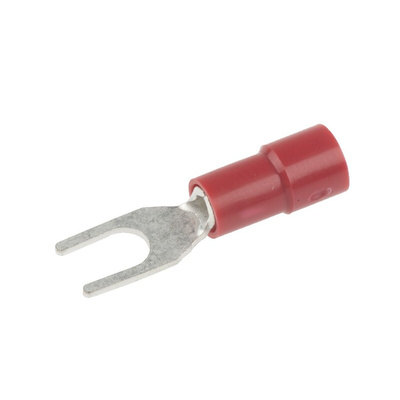

RS PRO Insulated Crimp Spade Connector, 0.5mm² to 1.5mm², 22AWG to 16AWG, 3.7mm Stud Size Vinyl, Red

RS PRO Insulated Spade Connectors

These insulated crimp-spade terminals are your go-to solution for effortless wire termination without the hassle of soldering. Designed to connect wires to studs, bus bars, and more, they provide unmatched strength and durability with their copper construction and tin plating. But that's not all - these connectors are also insulated with a non-conductive, corrosion-resistant nylon material for ultimate safety and longevity.

Features and Benefits

• Insulated fork terminals


• Copper with a tin plating


• Colour coded to correspond with wire size


• Strength and durability


• All models are highly reliable and excellent quality

RS PRO Insulated Crimp Spade Connector, 0.5 mm² to 1.5 mm², 22 AWG to 16 AWG, M3.5 Stud Size Vinyl, Red

This insulated crimp-spade connector from RS PRO allows you to connect wiring to screws and studs. You can use it with wires ranging in size from 22 AWG (American Wire Gauge) to 16 AWG, making it a versatile choice.


Thanks to the highly conductive copper contacts, the connector provides reliable electrical transmission. For ease of insertion, the vinyl and nylon insulation sleeves have a flared design. It's also easy to secure in place. Simply crimp the end of the connector for a firm hold with no need for any soldering.


The bright red colour of the connector helps you to quickly identify a specific connection within your setup. You can use this product in a range of telecommunications and electronics engineering applications, including terminal blocks, wiring harnesses and electrical panels.

Features and Benefits

• Red colour


• Copper contact material


• Tin contact plating


• Insulated


• Vinyl insulation material


• Maximum wire size of 16 AWG


• Maximum wire size of 1.5 mm²


• Minimum wire size of 22 AWG


• Minimum wire size of 0.5 mm²


• Overall length of 22 mm


• M3.5 stud size


• Thickness of 0.75 mm


• Width of 5.5 mm

Small Pack Size

Per Unit, RS stock no: 613-9441

Large Pack Size

RS stock no: 270-7656

Approvals

UL (E125401)

Certification

Certification

Certification

Certification

Dimensional Drawing

RS Pro Datasheet
