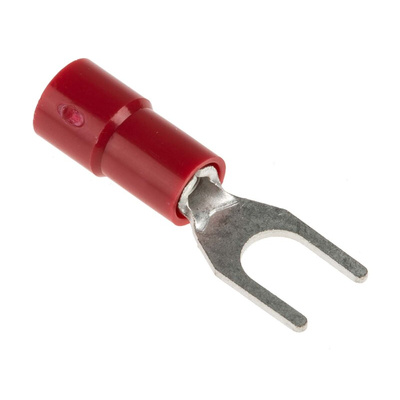

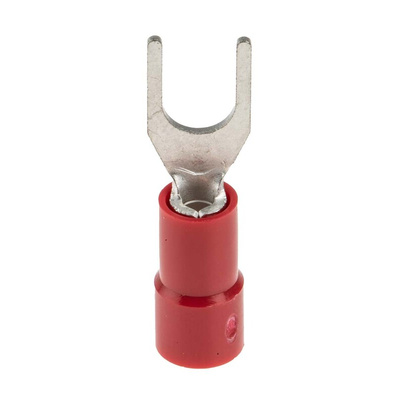

RS PRO Insulated Crimp Spade Connector, 0.5mm² to 1.5mm², 22AWG to 16AWG, 4.3mm Stud Size Vinyl, Red

RS PRO Insulated Crimp Spade Connector, 0.5 mm² to 1.5 mm², 22 AWG to 16 AWG, M4 Stud Size Vinyl, Red

Use this insulated crimp spade connector from RS PRO next time you need a reliable method of joining electrical wires. Once you've inserted the stranded wire into the tube, simply link your signal by connecting the fork with the screws.

The crimp spade connector is made from copper with tin plating, so it's an effective conductor. The vinyl insulation is flared for easy wire insertion and colour-coded according to wire size. This spade terminal is designed for wire sizes in the range of 0.5 mm² to 1.5 mm². It has a stud size of M4, with stud size indicating the diameter of the stud that the spade terminal is being placed around – in this case that's 0.4 mm.

Crimp spade connectors are typically used when repairing electrical installations such as electrical panels and wiring harnesses. These RS PRO connectors have been exhaustively tested to ensure quality and reliability.

Features and Benefits

• 16 to 22 AWG (American Wire Gauge)


• Tin contact plating


• Copper contact material


• Crimp spade connector


• Red vinyl insulation


• Suits a wire size range of 0.5 mm² to 1.5 mm²


• Overall length of 22 mm


• Width of 6.4 mm


• Spade thickness of 0.75 mm


• M4 stud size (0.4 mm diameter terminal)

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Small Pack Size

Per Unit, RS stock no: 613-9479

Large Pack Size

RS stock no: 270-7657
