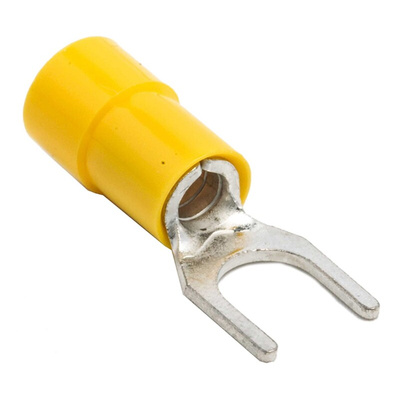

RS PRO Insulated Crimp Spade Connector, 4mm² to 6mm², 12AWG to 10AWG, M6 Stud Size Vinyl, Yellow

RS PRO Insulated Spade Connectors

These insulated crimp-spade terminals are your go-to solution for effortless wire termination without the hassle of soldering. Designed to connect wires to studs, bus bars, and more, they provide unmatched strength and durability with their copper construction and tin plating. But that's not all - these connectors are also insulated with a non-conductive, corrosion-resistant nylon material for ultimate safety and longevity.

Features and Benefits

• Insulated fork terminals


• Copper with a tin plating


• Colour coded to correspond with wire size


• Strength and durability


• All models are highly reliable and excellent quality

RS PRO Insulated Crimp Spade Connector, 4 mm² to 6 mm², 12 AWG to 10 AWG, M6 Stud Size Vinyl, Yellow

Looking for a reliable way to link wires to studs and screws? Choose this insulated crimp-spade connector from the RS PRO range. Its copper contacts are highly conductive to ensure robust electrical transmission, making it a good choice for electronics engineering and telecommunications applications.


For ease of connection, you can crimp the end of the connector without the need to solder. The connector has vinyl and nylon insulation sleeves with a flared design that makes it easy to insert. Its yellow colour lets you colour-code your set-up for quick identification of specific connections.


Use this connector for wires ranging from 12 to 10 AWG (American Wire Gauge) in size. It's suitable for use with terminal blocks, electrical panels and wiring harnesses.

Features and Benefits

• Yellow colour


• Copper contact material


• Tin contact plating


• Insulated


• Vinyl insulation material


• Maximum wire size of 10 AWG


• Maximum wire size of 6 mm²


• Minimum wire size of 12 AWG


• Minimum wire size of 4 mm²


• Overall length of 25.5 mm


• M6 stud size


• Thickness of 1 mm


• Width of 9 mm

Approvals

UL (E125401)

Certification

Certification

Certification

Certification

Dimensional Drawing

RS Pro Datasheet
