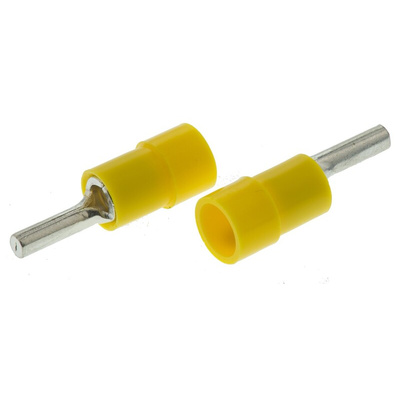

RS PRO Insulated, Tin Crimp Pin Connector, 4mm² to 6mm², 12AWG to 10AWG, 2.8mm Pin Diameter, 10mm Pin Length, Yellow

RS PRO Insulated Wire Pin Crimp Terminals

Need a quick and secure way to terminate electrical connections then use these superb pin crimp terminals from RS PRO. During application, they create an air-tight crimp connection to prevent oxygen or moisture from getting through, protecting the metal interior against corrosion.
Thanks to its tin-plated copper contacts, the crimp blade ensures a reliable electrical connection. The insulation protects the connection against chemical and mechanical damage and you can also colour-code your wiring for ease of identification thanks to a colour/size system.
You'll find these versatile connectors are used by electricians and engineers. It's suitable for a variety of applications as it can accommodate wires ranging in size from 26 to 16 AWG.

Features and Benefits

• Contact Material: Copper


• Contact Plating: Tin


• Insulated


• Unshrouded

Colour Code

• Mini Yellow 0.2 - 0.5 mm²


• Red 0.5 - 1.5 mm²


• Blue 1.5 - 2.5 mm²


• Yellow 2.5 - 6.5 mm²

Approvals

UL (E125401)

Certification

Certification

Certification

Certification

Dimensional Drawing

RS Pro Datasheet
