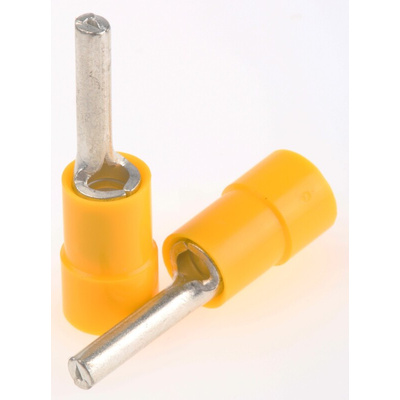

RS PRO Insulated, Tin Crimp Pin Connector, 4mm² to 6mm², 12AWG to 10AWG, 2.8mm Pin Diameter, 14mm Pin Length, Yellow

RS PRO Insulated, Tin Crimp Pin Connector, 4 mm² to 6 mm², 12 AWG to 10 AWG, 2.8 mm Pin Diameter, 14 mm Pin Length, Yellow

Use this RS PRO pin connector for a fast and secure way to terminate electrical connections. Thanks to its air-tight crimp, it prevents oxygen and moisture from reaching the metal interior for protection against corrosion.


For a strong electrical connection, the crimp blade has contacts made of tin-plated copper. The end of the connector is insulated with vinyl to prevent chemical and mechanical damage. The yellow colour also makes it easy to colour-code your wiring, so you can quickly identify your wires at a glance.


This connector is suitable for use with wires ranging in size from 12 to 10 AWG (American Wire Gauge), making it a versatile choice for use in a range of applications. It's commonly used by electricians thanks to its versatility and ease of use.

Features and Benefits

• Yellow colour


• Copper contact material


• Tin contact plating


• Insulated


• Vinyl insulation material


• Maximum wire size of 10 AWG (American Wire Gauge)


• Minimum wire size of 12 AWG (American Wire Gauge)


• Maximum wire size of 6 mm²


• Minimum wire size of 4 mm²


• Overall length of 27 mm


• Pin diameter of 2.8 mm


• Pin length of 14 mm


• Unshrouded

Approvals

UL (E125401)
