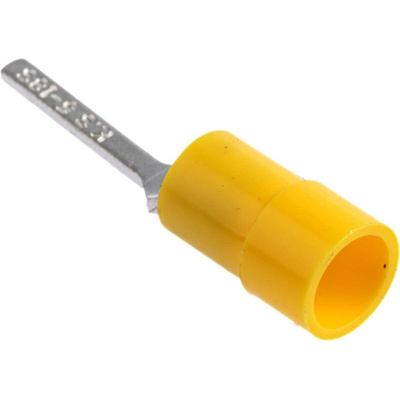

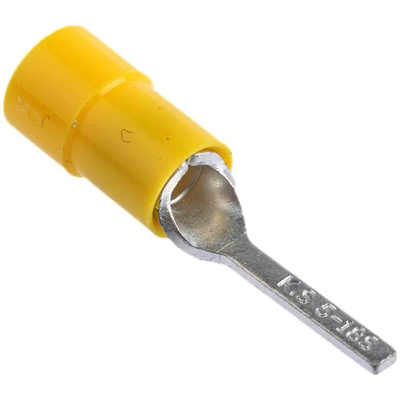

RS PRO Insulated Crimp Blade Terminal 18mm Blade Length, 4mm² to 6mm², 12AWG to 10AWG, Yellow

RS PRO Insulated Crimp Blade Terminal 18 mm Blade Length, 4 mm² to 6 mm², 12 AWG to 10 AWG, Yellow

Terminate your stranded single-wire electrical connections without the need for soldering using this RS PRO crimp terminal blade. It features a tight-fitting construction that prevents corrosion of the metal inside, so it will last a long time.


The crimp blade is made of tin-plated copper for a long-lasting and dependable electrical connection. To prevent damage to the connection, the blade is insulated with flared vinyl. The insulation's yellow colour makes it easy to identify different wire sizes within a colour-coded system. You'll find this versatile and easy-to-use component used by electricians.

Features and Benefits

• Blade length of 18 mm


• Blade thickness of 1 mm


• Blade width of 2 mm


• Yellow colour


• Copper contact material


• Tin contact plating


• Male gender


• Not hooked


• Inner diameter of 6.4 mm


• Insulated


• Vinyl insulation material


• Maximum wire size of 10 AWG (American Wire Gauge)


• Minimum wire size of 12 AWG (American Wire Gauge)


• Maximum wire size of 6 mm²


• Minimum wire size of 4 mm²


• Overall length of 31 mm


• Unshrouded

Approvals

UL (E125401)

Certification

Certification

Certification

Certification

Dimensional Drawing

RS Pro Datasheet
