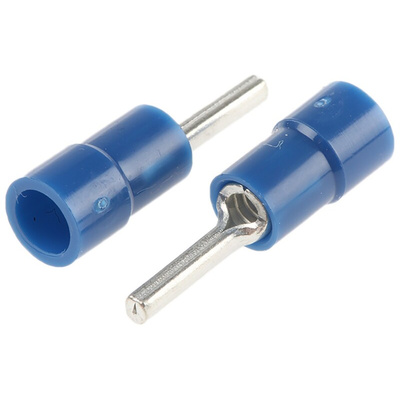

RS PRO Insulated, Tin Crimp Pin Connector, 1.5mm² to 2.5mm², 16AWG to 14AWG, 1.9mm Pin Diameter, 10mm Pin Length, Blue

RS PRO Insulated, Tin Crimp Pin Connector, 1.5 mm² to 2.5 mm², 16 AWG to 14 AWG, 1.9 mm Pin Diameter, 10 mm Pin Length, Blue

When you need to quickly and securely terminate electrical connections, turn to this pin connector from RS PRO. Its contacts are made from tin-plated copper to ensure a reliable electrical connection.


To protect the metal interior against corrosion, the air-tight crimping prevents moisture and oxygen from getting through. The end of the connector is insulated with vinyl to shield the connection against mechanical and chemical damage. You can also integrate this connector into a colour-coded system as its blue colour allows you to identify it at a glance.


You'll find this type of connector used by electricians thanks to its ease of use and versatility. It's useful for a variety of applications as it accommodates wires ranging in size from 16 to 14 AWG (American Wire Gauge).

Features and Benefits

• Blue colour


• Copper contact material


• Tin contact plating


• Insulated


• Vinyl insulation material


• Maximum wire size of 14 AWG (American Wire Gauge)


• Minimum wire size of 16 AWG (American Wire Gauge)


• Maximum wire size of 2.5 mm²


• Minimum wire size of 1.5 mm²


• Overall length of 20.8 mm


• Pin diameter of 1.9 mm


• Pin length of 10 mm


• Unshrouded

Small Pack Size

Per Unit, RS stock no: 613-9873

Large Pack Size

RS stock no: 270-7623

Approvals

UL (E125401)
