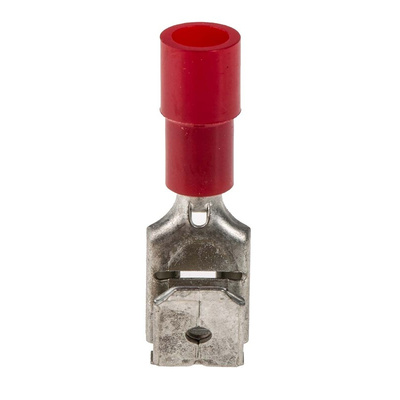

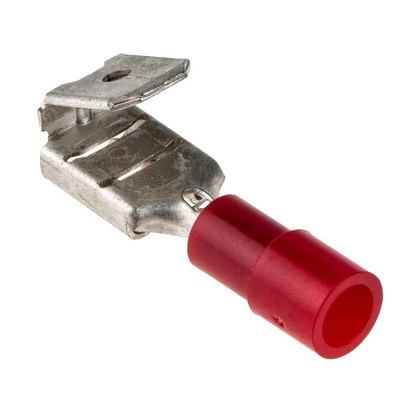

RS PRO Red Insulated Female Spade Connector, Piggyback Terminal, 6.35 x 0.8mm Tab Size, 0.5mm² to 1.5mm², Клемма

RS PRO Red Insulated Spade Connector, 6.35 x 0.8 mm Tab Size, 0.5 mm² to 1.5 mm²

Use this RS PRO spade connector to connect single wires to relays or components. One of the most popular types of wire connector, its spade design allows terminals to be connected and disconnected quickly and easily while the bolt is still partially screwed in.

Designed for crimping termination, simply deform the connector around a wire using pliers. This method allows for easy, safe and solder-free joints that are mechanically strong. A wire can be easily slotted into the component once the other wire has been crimped on the opposite end. Tin-plated brass contacts resist damage. It also has a rifled barrel, giving it improved contact and tensile strength.

As part of the RS PRO range, this spade connector has been stringently tested for safety and quality. Most commonly found in automotive electronics, it's also commonly used in domestic appliances such as dishwashers.

Features and Benefits

• Red spade connector
• Wire size range of 0.5 mm² to 1.5 mm², 22 AWG to 16 AWG
• Tab size of 0.8 mm x 6.35 mm
• Unshrouded
• Crimp termination method
• Polycarbonate (PC) insulation material
• Brass contacts, tin-plated finish
• Length of 23 mm

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Small Pack Size

Per Unit, RS stock no: 613-9918

Large Pack Size

RS stock no: 270-7611

Approvals

UL (E125401)

Certification

Certification

RS PRO Datasheet
