6GK5101-1BC00-2AA3, Siemens 6ES7 Series LAN Connection Module, Модуль

X101 - Media converter

Unmanaged Industrial Media Converter
Design of Ethernet networks with 10/100Mbit/s
Line, star and ring structure
Range up to 26,000 m
X101-1: Multimode Interface
X101-1LD: Single-mode interface
Subscriber or network connections electrical or optical depending on the device port characteristics
Redundant voltage feed
Diagnosis at the device itself using LED

Approvals

CE

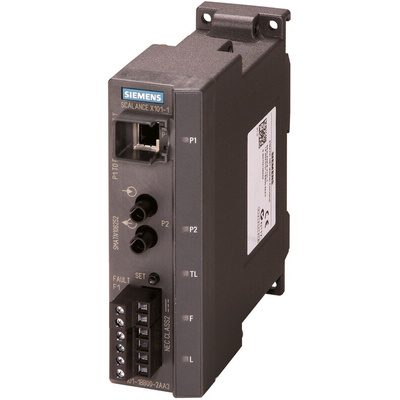

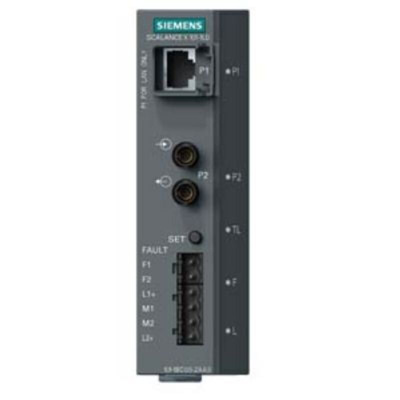

Siemens LAN Connection Module, Unmanaged, LED Diagnosis - SCALANCE Series - 6GK5101-1BC00-2AA3

Integrate remote stations into your industrial Ethernet system with this LAN connection module from Siemens. It works over a distance of up to 5km while maintaining fast data transfer rates of up to 100Mbits/s. The unit converts electrical signals into optical ones, so you'll benefit from stable network communication, even when using different types of cables. For reliability, it has an integrated redundant power supply, which means it continues to operate even if one of its power supply sources fails. A rugged metal enclosure makes this module suitable to use in harsh industrial environments.

Features & Benefits

• IP30-rated housing is protected against tools and wires larger than 2.5mm
• LEDs for power, link status and data traffic indications allow for quick visual diagnostics
• Latching enclosure for strain and bending relief to safeguard conductors from damage
• Wide operating temperature range of -10°C to +60°C for safe use in demanding settings

How big is this connection module?

The unit's compact dimensions of 125 (H) x 40 (W) x 124mm (D) let you achieve maximum packing efficiency in your control cabinet.
