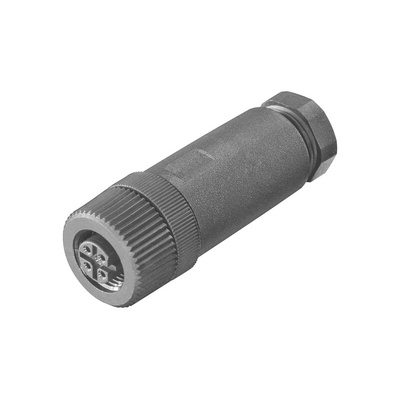

6GK1908-0DC10-6AA3, Siemens Connector for Use with 6GK Series, ET 200 Series

Siemens Connector, For Use With SCALANCE X208PRO Ethernet Switch, Screwed Joint Locking Mechanism - 6GK Series - 6GK1908-0DC10-6AA3

Want rapid connectivity in your automation network? Simply install this 5-pole connector from Siemens. You can plug in a compatible M12 cable to transmit data at up to 100Mbit/s. Thanks to its integrated screw contacts, this component accepts PROFIBUS cables in addition to terminal equipment to give you broad functionality. B-coded units like this one are common in process control systems, where they're used to connect sensors, actuators and signalling devices.

Features & Benefits

• Comes with installation instructions for a quick and easy setup
• Maximum tightening torque of 0.6Nm means it's a breeze to install by hand
• Suitable for harsh work areas due to its broad operating temperature range between -40°C and +70°C
• Low weight of 37g keeps your system free of unnecessary strain
• Supplied in bags of three units, enabling you to make multiple connections

What's this connector's IP rating?

This hardy connector is IP67-rated, which means it's dust-tight and waterproof even when immersed up to a depth of 1m for half an hour.

Signalling Contact M12 Cable Connector
