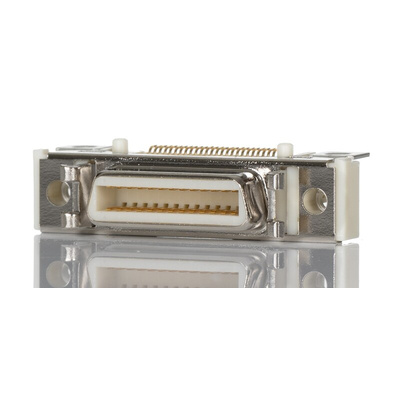

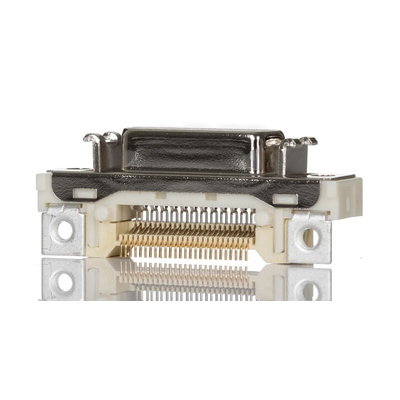

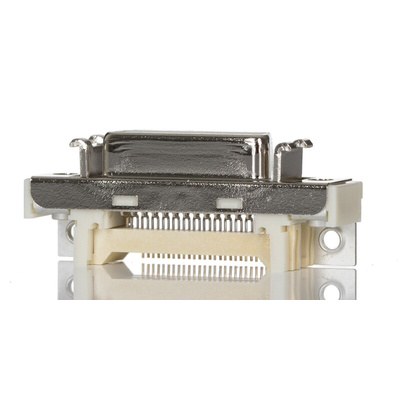

10226-1210 PE, 3M Female 26 Pin Right Angle Surface Mount SCSI Connector 0.64mm Pitch, Solder, Разъем

Mini D Ribbon (MDR) 102 Series Receptacles with Ground Lock

These 3M Mini D Ribbon (MDR) 102 Series PCB shielded right angle receptacles have M2.5 lockdown threads. The design of these MDR 102 Series PCB shielded receptacles incorporates a latching interface for connector stability.

Features and Benefits

• Female right angled Mini Delta Ribbon sockets, for surface-mounted soldering (SMT).
• Identical pin length for both rows of contacts: ensures excellent signal synchronisation.
• Connectors for digital connections: limited signal loss, high frequencies.
• Applications: LCD interfacing, graphics cards, flat screens, LVDS terminals.
• Excellent EMI / RFI protection.

Avaialble in this series:

• 614-8906 is a steel 26 way panel mount D-sub Connector
• 749-4862 is a 14 way panel mount D-sub Connector
• 749-4869 is a 50 way panel mount D-sub Connector
• 749-4878 is a PET 26 way panel mount D-sub Connector

What are D-Sub Conenctors used for?

D-sub connectors are used in a variety of electronics applications, and are frequently found in heavy duty computing systems such as in hospital equipment and industrial computers. They are also common in personal and office computing systems.

They are a robust connector that offer a secure connection, meaning they are suitable for use in more challenging environments.

Why choose 3M?

3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

Note

Manufacturers Part Numbers 102xx-1A10 have Positioning Bosses in line with the holes for Ground Flange Fasteners, see Datasheet for details.

3M SCSI Connector, Steel Construction, Copper Alloy Contact Material - 102 Series - 10226-1210 PE

For rapid data transfer between your electronic device and computer, opt for this SCSI connector from 3M. Both rows of contacts have equal pin lengths for reduced risk of EMI and RFI, ensuring clear signal transmissions. As it's made from rugged steel, this unit stands up to impact and shrugs off corrosion. Thanks to the right-angle design, you can easily fit this connector in awkward spaces and minimise cable strain.

Features & Benefits

• Compact pitch size of 0.64mm to fit small conductors
• UL 94-V0 flammability rating indicates that burning stops in 10 seconds
• Interface latch design for secure mating

Applications

• Storage systems
• Printers and scanners
• Industrial automation
• Communications equipment

What type of contacts does this connector have?

The contacts are made from copper alloy with gold over nickel plating for high electrical conductivity and resistance to corrosion.

Mini Delta Ribbon (MDR)

Cable mount plugs and PCB mount receptacles with pre-loaded ribbon contacts for long life
Finger releasable latching backshells for cable mounting applications

A Mini Delta Ribbon (MDR) system designed for high density I/O applications on a 1.27mm pitch.

Datasheet

Selection Guide - 10226-1210 PE
