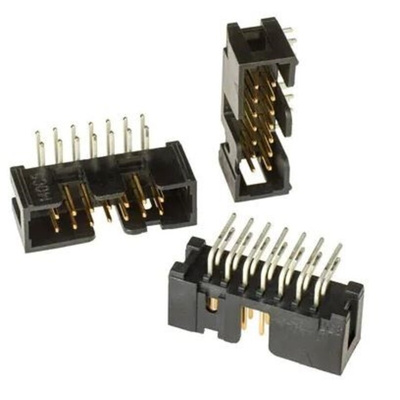

N2514-5002RB, 3M 2500 Series Right Angle Through Hole PCB Header, 14 Contact(s), 2.54mm Pitch, 2 Row(s), Shrouded

6148978
Номер производителя: N2514-5002RBПроизводитель: 3M
Цена за шт.
822.90 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

3M 2500 Series 2.54 x 2.54mm Low Profile Four-Wall Shrouded PCB Headers

From 3M, the 2500 series 2.54 x 2.54mm four-wall shrouded PCB headers with a low profile, space saving design are available in SMT, through hole, straight and right angle PCB mounting configurations.

These 2.54mm 2500 series PCB headers have centre slot polarization to facilitate accurate insertion and dual slot polarization making the connector compatible with other competitive polarization designs. Versions of these 2500 series PCB header connectors are available with a high temperature (260°C) black PCT housing (part numbers pre-fixed with 'N') which are suitable for 'no lead' soldering operations, through hole PCB headers with high temperature housings are suitable for 'paste in hole' reflow soldering techniques.

• Part numbers (N)25xx-xx02 are for use with a 1.57mm PCB thickness
• Part numbers (N)25xx-xx03 are for use with a 2.39 to 3.18mm PCB thickness
• A latch is available for use with these headers see stock number 192-7782
• Socket retainer clips are also available for these shrouded PCB headers, see stock number 323-8220 typically

Features and Benefits

• Low profile, space saving design
• Center slot polarization prevents mis-insertions and reduces insertion time
• Dual slot polarization means broader compatibility with competitive polarization designs (not 6, 8 or 10 pos.)
• Optional retainer clip for locking sockets in place and increasing connection reliability in vibration prone environments

Applications

PCB Headers are used to connect two PCB boards together. This makes it highly efficient by not having to solder the board together or wire them and will save you time. It also makes it very easy to remove the second board if anything fails.

Why choose 3M?

3M are a reliable name in computing and electronic connection. Combined with RS Components excellent customer service, 3M provides a range of specialist connectivity solutions for a variety of industries and applications.

3M PCB Header, 14 Way, Right Angled - 2500 Series - N2514-5002RB

Looking for the missing piece to round off your electrical circuit? This right-angled PCB header from 3M makes all the right connections. With its robust copper alloy contacts delivering high electrical conductivity, you can be sure of steady signal transmissions to your PCB. Whether you're making wire-to-board or board-to-board connections, this header has reliable transfers covered.

Features & Benefits

• UL 94V-0 flammability rating means it stops the spread of fire
• Right-angle orientation lets you fit it into tight spaces with minimal wire strain
• PBT body provides insulation to prevent electric hazards

Applications

• Telecommunications systems
• HVAC equipment
• Computer peripherals

How do I connect wires to this header?

You can quickly connect wires to this header by soldering them to the pins.

What's the temperature rating of this header?

With a wide operating temperature range of -55°C to +105°C, this header can take the heat in challenging settings.

Техническая спецификация
pdfN2514-5002RB Datasheet
pdfLine Drawing - 2500 Series
pdfLine Drawing - 2500 Series
Защищенный/Незащищенный:
Shrouded
Кол-во контактов:
14
Количество рядов:
2
Концевая заделка:
Припой
Материал контактов:
Медный сплав
Номинал тока:
2.0A
Ориентация корпуса:
Правый угол
Покрытие контактов:
Золото
Серия:
2500
Система соединителя:
Board to Board, Wire to Board
Тип монтажа:
Сквозное отверстие
Шаг:
2.54мм
