88970141, Crouzet Millenium 3 Series Logic Module, 24 V dc Supply, Relay Output, 6-Input, Analogue, Digital Input, Логический модуль

Crouzet Logic module

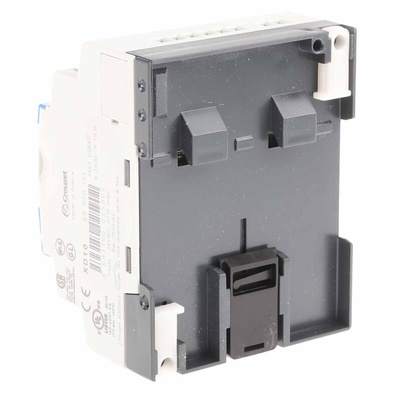

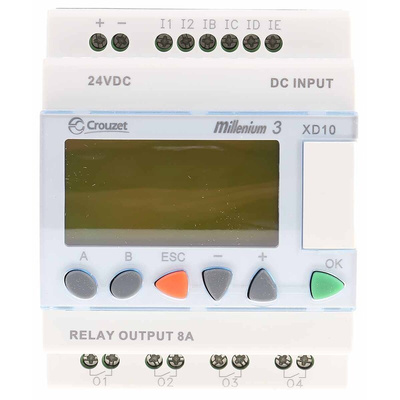

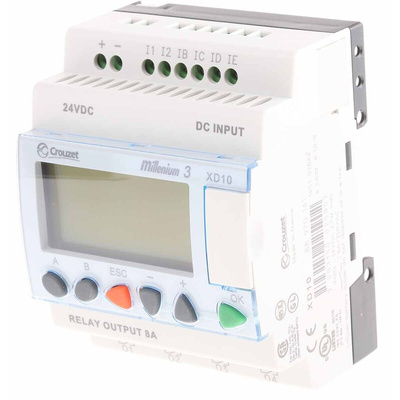

The Crouzet Millenium 3 series logic module is the latest generation of the Millenium expandable version XD10 series with 6 digital inputs( (including 4 analogues) and 4 relay output of 8A contact current rating. This DIN rail mounting type logic module has a screw termination method. It has a large memory for applications that require a larger space. The logic module has a supply voltage rating of 24VDC.
Crouzet Millenium 3
:
The Millenium 3 is the latest generation in the Millenium series. Improvements over the Millenium 2 Plus include:
The Compact Controller has around twice the memory size
The Expandable Controller has around four times the memory size
10-bit analogue input resolution (0 – 10V signal) on dc input types (formerly 8 bit)
18 character (formerly 12), 4 line display with scrolling text and bar graph functionality
Choice of ladder or function block programming

Features and Benefits

Operating temperature ranges between -20°C and +55°C
Green LCD with 4 lines of 18 characters and configurable backlighting
Selective parameter setting: you can choose the
parameters that can be adjusted on the front pane
Battery backup
Choice of ladder or function block programming
Serial, USB port communication
Protects program
Selective configuration
Memory back-up using EEPROM
ESD protected
Expandable controller
LCD display
Memory size 368bits
Compact controller

Applications

Automatic washing equipment
Agricultural machinery
Managing air conditioning
Heating systems
