88970165, Crouzet Millenium 3 Series Logic Module, 12 V dc Supply, Relay Output, 16-Input, Analogue, Digital Input, Логический модуль

Crouzet Logic Module

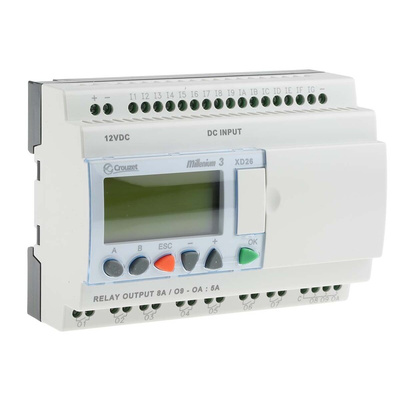

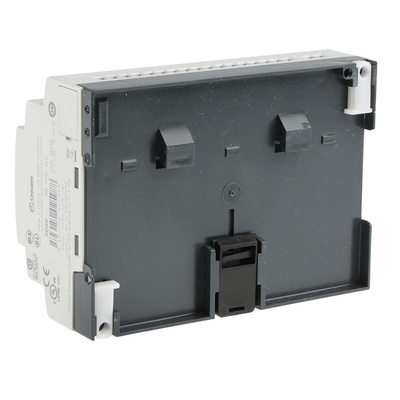

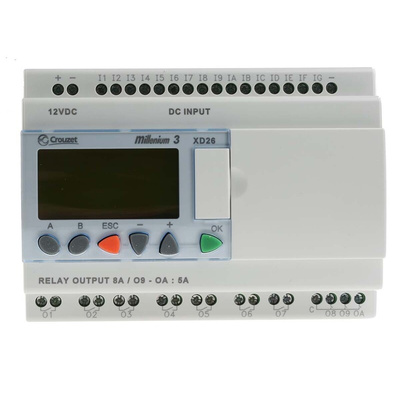

The Crouzet Millenium 3 series logic module is the latest generation of the Millenium expandable version XD26 series with 16 digital inputs( (including 6 analogues) and 8 relay outputs of 8A current rating plus 2 relay output of 5A current rating. This DIN rail mounting type logic module has a screw termination method. It has a large memory for applications that require a larger space. The logic module has a supply voltage rating of 12VDC.
Crouzet Millenium 3:
The Millenium 3 is the latest generation in the Millenium series. Improvements over the Millenium 2 Plus include:
The Compact Controller has around twice the memory size
The Expandable Controller has around four times the memory size
10-bit analogue input resolution (0 – 10V signal) on dc input types (formerly 8 bit)
18 character (formerly 12), 4 line display with scrolling text and bar graph functionality
Choice of ladder or function block programming

Features and Benefits

Operating temperature ranges between -20°C and +55°C
Green LCD with 4 lines of 18 characters and configurable backlighting
Selective parameter setting: you can choose the parameters that can be adjusted on the front pane
Allow the use of the entire library of specific functions
blocs of the software workshop
Expandable versions: open to XN network communication extensions and digital I/O or analogue extensions
Analogue inputs 0-10 VDC, Potentiometer (0-20 mA/Pt100 with converters)
Open to XN network communication extensions, digital I/O, analogue, Pt100 extensions
Operating temperature ranges between -20°C and +55°C
Battery backup
Choice of ladder or function block programming
Serial, USB port communication
Protects program
Selective configuration
Memory back-up using EEPROM
ESD protected
Expandable controller
LCD display
Modbus communication 2 x 8 words with read⁄write access
Network creation option communication between 7 millennium 3 units

Applications

Automatic washing equipment
Agricultural machinery
Managing air conditioning
Heating systems

Certifications

CE
CSA
GL
UL approved
IP40 rated
