88970031, Crouzet Millenium 3 Series Logic Module, 24 V dc Supply, Relay Output, 18-Input, Analogue, Digital Input, Логический модуль

Crouzet Logic module

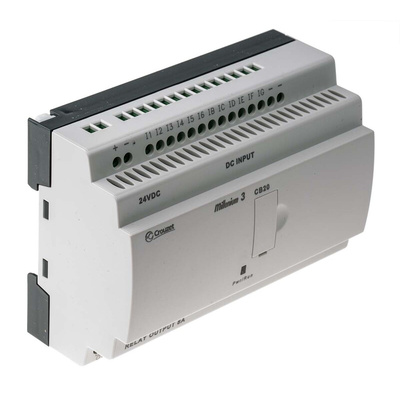

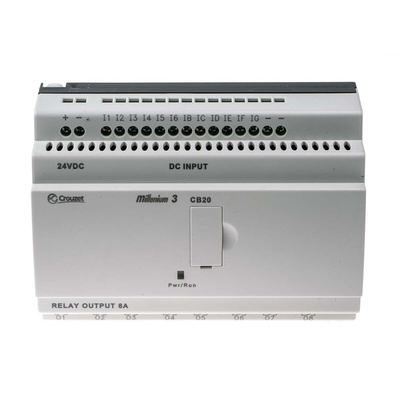

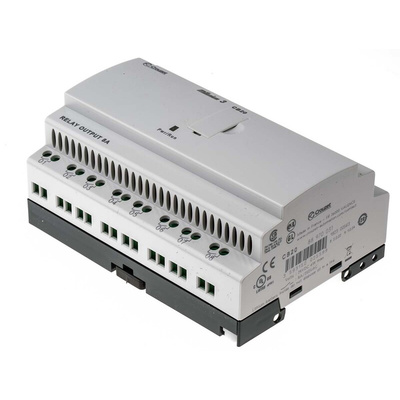

The Crouzet Millenium 3 series logic module is the latest generation of the Millenium compact version CB20 series with 12 digital (including 4 analogues) inputs and 8 relay outputs of 8A contact current rating. This DIN rail mounting type logic module has a screw termination method. It has a large memory for applications that require a larger space. The logic module has a supply voltage rating of 24VDC.
Crouzet Millenium 3
:
The Millenium 3 is the latest generation in the Millenium series. Improvements over the Millenium 2 Plus include:
The Compact Controller has around twice the memory size
The Expandable Controller has around four times the memory size
10-bit analogue input resolution (0 – 10V signal) on dc input types (formerly 8 bit)
18 character (formerly 12), 4 line display with scrolling text and bar graph functionality
Choice of ladder or function block programming

Features and Benefits

Efficient and economical version, without display or keys setting
Operating temperature ranges between -20°C and 55°C
Battery backup
Analogue inputs 0-10 VDC, Potentiometer (0-20 mA/Pt100 with converters)
Choice of ladder or function block programming
Serial and USB port communication
Protects program
Selective configuration
Memory back-up using EEPROM
ESD protected
Expandable controller
Memory size is 368bits / 200 words

Applications

Automatic washing equipment
Agricultural machinery
Managing air conditioning
Heating systems
