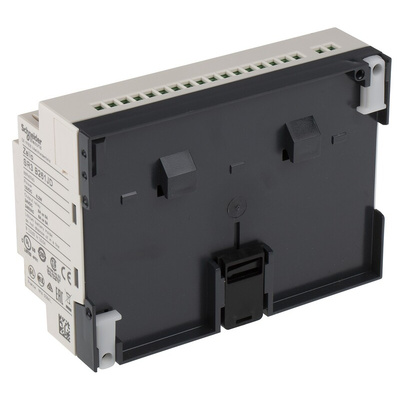

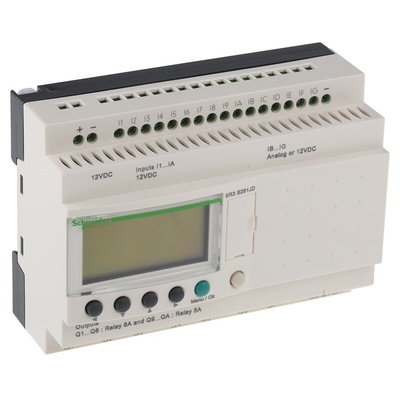

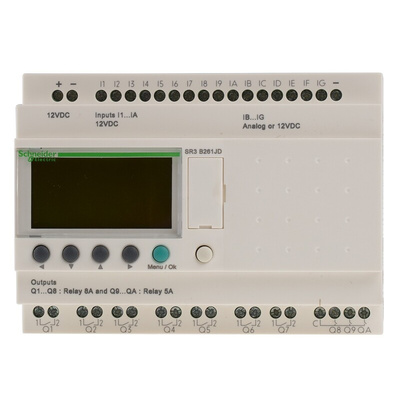

SR3B261JD, Schneider Electric Zelio Logic Series Logic Module, 12 V dc Supply, Relay Output, 16-Input, Analogue, Digital Input, Логический модуль

Schneider Electric Logic Module, 16 Inputs, 10 Outputs - Zelio Logic Series - SR3B261JD

Use this logic module from Schneider Electric to control automation processes. The digital unit has scope for up to 16 inputs and 10 outputs, meaning it’s suited to commercial and industrial applications. These can include anything relay-reliant, like controlling production processes or managing lighting systems. Programme the module directly via the buttons on the interface or by connecting a PC to use Ladder logic or FBD (function block diagram). Free downloadable Zelio Logic software is also available to make your programming tasks easier.

Features & Benefits

• LCD (liquid crystal display) backlight for easy readability, even in low light
• Full control and monitoring over your installations, remotely or on-site
• DIN rail or panel mounting options to suit your needs
• Low power consumption saves energy

Applications

• Automation of small machinery
• Control of lighting automation
• Assembly equipment

What is meant by the term 'smart relay'?

Smart relays are installed devices that can be added to any electrical circuit. They allow remote wireless control of anything else connected to that circuit. With a smart relay, you can enjoy more flexibility with your automation.

Schneider Electric Zelio Logic 2 Smart Relay - Additional Info:

Schneider Electric now offers a new generation of expandable intelligent relays, offering substantial advantages in flexibility and functionality. Zelio Logic 2 Smart Relay is the optimum solution to control tasks such as automating small machines within industry, lighting, HVAC and access control within buildings.

With the small footprint, simple programming, powerful control functions and the possibility of changing or modifying the program in case of changed application requirements, it offers great savings in space and price compared to other options.

Choose between two new series - Compact and Modular. The Compact series is not expandable and is available with the following I/O block sizes: 10 I/O, 12 I/O and 20 I/O.
The Modular series is available with 10 and 26 I/O basic units and is expandable up to 40 I/O with the latter. Apart from this flexibility both new series are programmable using FBD, ladder and Grafcet SFC programming languages.
User friendly design for easy programming and operation, either directly from the module using the navigation buttons or via Windows based software.
