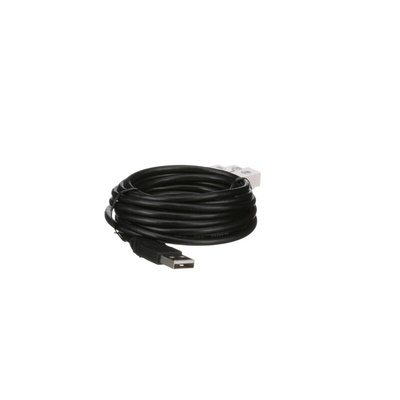

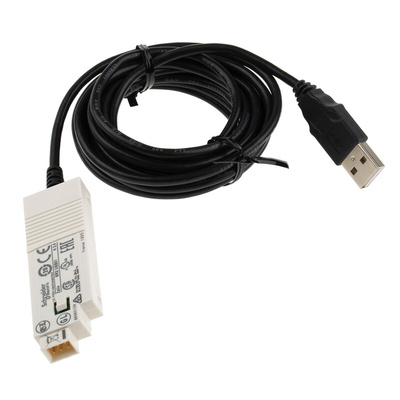

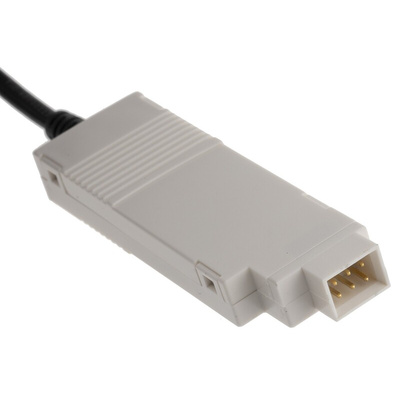

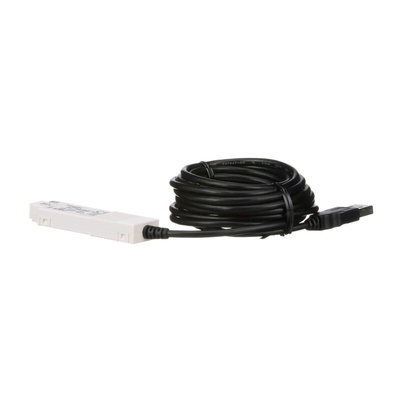

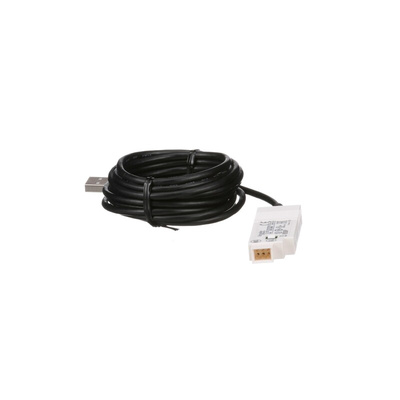

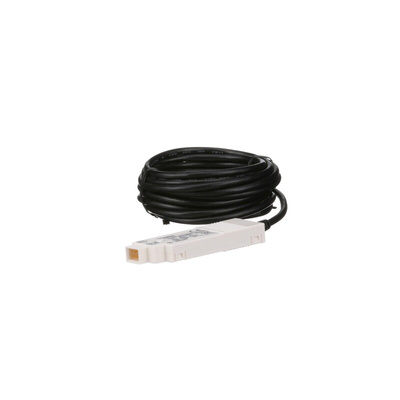

SR2USB01, Schneider Electric Zelio Series PLC Cable for Use with Zelio Logic 2

Schneider Electrics PC Connecting Cable - For Smart Relay Zelio Logic

Schneider Electrics PC connecting cable is predominantly used with Zelio Logic smart relays, it's used to connect the relays to the PC. Zelio Logic provides users with a real alternative to a solution based on cabled logic or specific cards.

Features & Benefits

• Schneider's PC connecting cable is compatible with Windows 200 or XP
• 3m in length
• To be used with Zelio Soft software
• Connection type for 615-2365 is a USB, the connection type for 469-2300 is SUB-D 9

Schneider Electric PLC Cable, Plug-In Termination, 3m Length - Zelio Series - SR2USB01

Link a relay to your control system in a jiffy using this PLC cable from Schneider Electric. It serves as a connection point for data and signal transmissions to your industrial processing unit. To complete your setup, you can use this cable with a relay from the Zelio Logic 2 range. As it's compatible with Windows XP, Windows Vista and Windows 7 operating systems, it's a versatile option. A USB connector makes it a breeze to plug the cable into your electrical port without the hassle of terminating the conductors.

Features & Benefits

• Length of 3m for convenient long-range connection
• Weighs just 100g for minimal strain on your setup
• Strain relief on both connectors prevents cable damage caused by bending

Applications

• Construction sites
• Mining equipment
• Data centres
• HVAC systems

How does a PLC work?

A PLC is a tiny yet powerful computer that can automate the transmission, processing and storage of data and signals in an industrial network from multiple feeds. It typically comes with input and output modules to receive and transfer data from machine sensors and actuators.

How do I set up this cable on my computer?

You can integrate this cable into your computer network using the Zelio Soft software.

Schneider Electric Zelio Logic 2 Smart Relay - Additional Info:

Schneider Electric now offers a new generation of expandable intelligent relays, offering substantial advantages in flexibility and functionality. Zelio Logic 2 Smart Relay is the optimum solution to control tasks such as automating small machines within industry, lighting, HVAC and access control within buildings.

With the small footprint, simple programming, powerful control functions and the possibility of changing or modifying the program in case of changed application requirements, it offers great savings in space and price compared to other options.

Choose between two new series - Compact and Modular. The Compact series is not expandable and is available with the following I/O block sizes: 10 I/O, 12 I/O and 20 I/O.
The Modular series is available with 10 and 26 I/O basic units and is expandable up to 40 I/O with the latter. Apart from this flexibility both new series are programmable using FBD, ladder and Grafcet SFC programming languages.
User friendly design for easy programming and operation, either directly from the module using the navigation buttons or via Windows based software.
