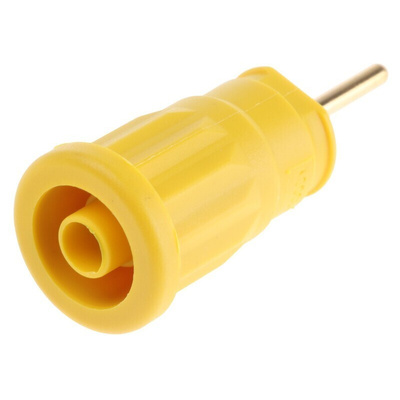

972 363-103, Hirschmann Test & Measurement Yellow Female Test Socket, Solder Termination, 24A, 1000V ac/dc, Gold Plating

Safety base with solder lug

SEP 2630 S1.9, Hirschmann CAT II 4mm safety system socket that is contact-protected, and with a 1.9 mm soldering spike of gold-plated brass construction. These safety connectors are ideal for installation into switchpanels and equipment chassis with wall thicknesses from 1 to 10 mm. The soldering spike can be soldered into printed boards if desired.

4 mm flush-mount safety base, with 1.9 mm soldering pin
Quick mounting on front faces with thicknesses between 1 and 10 mm
Installation hole 12.2mm
Temperature range -40 to +80° C

Standards

IEC 61010

Approvals

CEI 61010

Socket SEP 2630 S1,9
