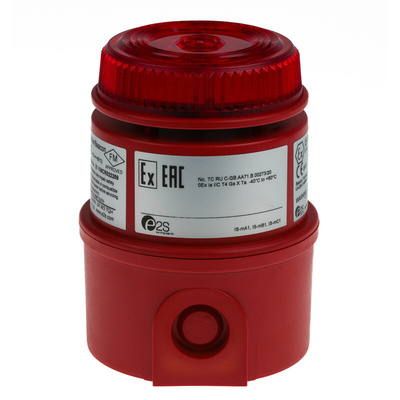

IS-MC1-R/R, e2s IS-MC1 Series Red Sounder Beacon, 16 → 28 V dc, IP65, Surface Mount, 100dB at 1 Metre

e2s Sounder Beacon

The e2s DC flashy sounder beacon with red LED has sound level outputs up to 100dB (A) at 1m. This device provides 49 alarm tones options and 3 remotely selectable stages. It requires 1 Zener barrier or galvanic isolator to run both the sounder and the beacon. Alternatively, the unit can be operated as an individual signal.
Note:
Installation can be powered from any certified Zener barrier or galvanic isolator. Only one of these is required to running both sounder and beacon.

Features and Benefits

The supply voltage is between 16VDC and 28VDC
Input overload and reverse current protection
Rated for zone 0,1 and 2, gas group IIC
End of line resistor certified
Array of 6 high intensity LEDs
Auto synchronised sound output
Prismatic lens optimises LED effectiveness
Available with custom tone configurations and frequencies
Operating temperature is between -40°C and +60°C

Certifications

EN50014, EN50020, EN50284
ATEX, IECEx, FM, GOST-R approved

IS-mC1 Instruction Manual

IS-mC1 Data Sheet
