E2XS1FDC024B1R1B, e2s E2xS1F Series Surface Mount Electronic Sounder, 10 → 30 V dc, 116dB at 1 m, IP66, IP67, DC, 45-Tone

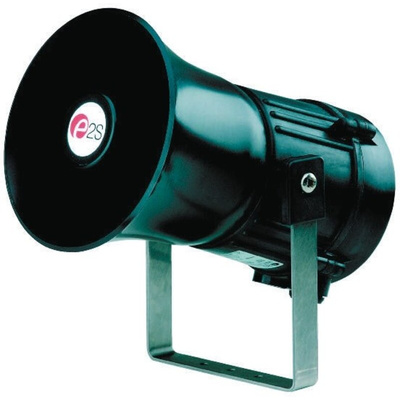

e2s Sounder

The e2s Sounder is a 45-tone alarm with a sound level output of 116dB(A) at a distance of up to1m and 3 remotely selectable stages. The E2xS112 alarm sounder horn is suitable for all general signalling duties. The E2x range features enclosures manufactured from lightweight, corrosion-proof PPS and high impact, fire-retardant ABS re-entrant flare horns, both of which are suitable for the harshest of environments.
Caution
The E2x 'EG' range of products currently comply with a withdrawn standard EN50021 and therefore E2S is not permitted to issue a Declaration of Conformity. For applications in potential atmospheres within the EU this product can currently be used as a replacement to existing installations but not in new installations.
For applications outside of the EU, the legislative restrictions on use do not apply. Please contact E2S if any further information.

Features and Benefits

Automatic synchronisation on multi-sounder system
Very large termination area
Ratchet adjustable stainless steel ’U’ bracket

Certifications

ATEX certificate: DEMKO 06 ATEX 0421554, EN 50021:1999
UL File ref:E230764

E2xS1F Datasheet

E2xS1F Instruction Manual
