FLUKE 117 EUR, Fluke 117 Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 600V ac Max, Мультиметр

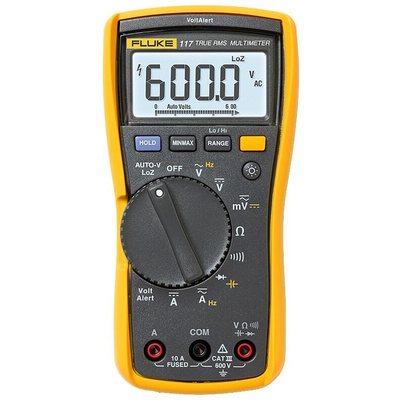

Fluke 117 Multimeter

The Fluke 117 compact True RMS multimeter is popular for use in demanding settings such as commercial buildings, hospitals and schools. It includes integrated non-contact voltage detection to help get the job done faster.

Features & Benefits

• VoltAlert Technology for integrated non-contact voltage detection
• AutoVolt feature for automatic AC/DC voltage selection
• LoZ: Low input impedance to eliminate stray voltage
• Large white LED backlight
• True RMS
• Min/Max/Average to record signal fluctuations
• Current measurement 20A (30 seconds momentary 10A continuous)
• Resistance, continuity, frequency and capacitance testing capability
• Fluke 322 Compact Clamp Meter
• Accurate low current measurements
• ToolPak Magnetic Meter Hanging Strap
• 11A, 1000V FAST fuse (Fluke part no. 803293)
• CAT III 600 V safety rated

Fluke 117 Additional Specifications

• DC Voltage Accuracy: 0.5% + 2d
• AC Voltage Accuracy: 2.0% +3d
• DC Current Accuracy: 1.0% +3d
• AC Current Accuracy: 1.5% +3d
• Resistance Accuracy: 1.5% + 2d
• Diode Test Range: 2.000V
• Diode Test Resolution: 0.001V
• Diode Test Accuracy: 0.9% +2d
• Capacitance Accuracy: 1.9% +2d
• Display Count: 6000
• Display Update: 4/sec
• Bar Graph Segments: 33
• Bar Graph Update: 32/sec

Note

For Calibrated Articles - Please note that accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, with relative humidity at 0 % to 95 %.

Contents

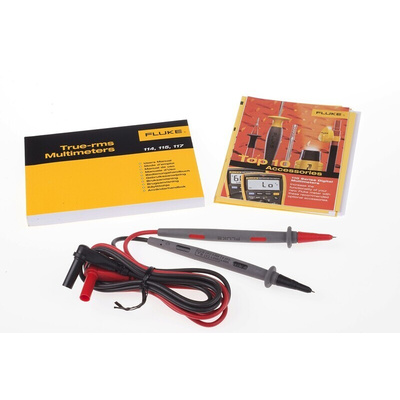

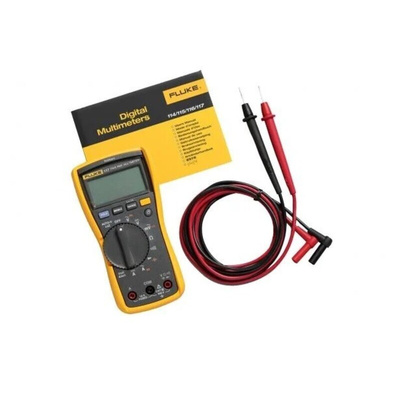

TL75 Test leads, holster, user’s manual and 9V battery (installed).

FLUKE Multimeter, Battery Powered, Backlit LCD Display - FLUKE 117

Features & Benefits

• 400-hour battery life means minimal disruption
• 600V safety voltage for use on branch and feeder circuits
• True-RMS technology gives you precise measurements
• Minimum, maximum and average readings to record signal fluctuations

Applications

• Electrical wiring installations
• Distribution board maintenance
• Building inspections
• Electronics repair workshops

What is the LoZ function for?

The LoZ function on this multimeter gives a low impedance input to any circuit you're testing. This stops ghost voltages from producing false readings when two circuits are wired close together.

What's the VoltAlert function for?

For safety, the VoltAlert technology detects voltages near the instrument. This means you can quickly check whether there's power to cabinets or wiring before you start work.

’Buy a Fluke, Get one Free’ is back!!
Between March 1st, 2024 and August 31st, 2024, the customer spends £150 or more on a qualifying Fluke product (Fluke Industrial, Fluke Calibration, Fluke Networks, or Beha-Amprobe).
Customer claims their tool online at: www.fluke.co.uk/freefluke
A proof of purchase in the form of a receipt or invoice is required.

Fluke 117 Electricians Multimeter Data Sheet

Fluke 114, 115, and 117 True-rms Multimeters Users Manual
