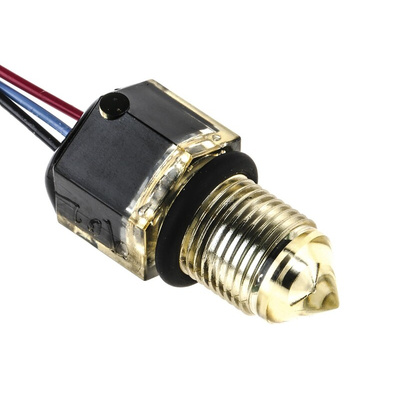

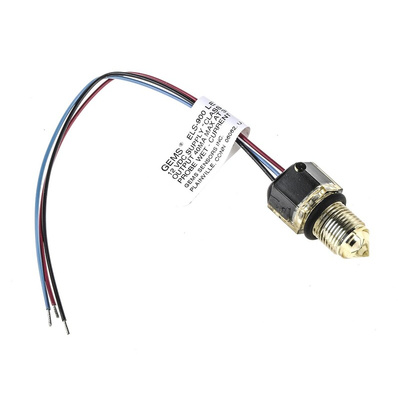

208995, Gems Sensors Electro Optic Level Probe, Horizontal, Vertical, Polyethersulfone Body

Gems Sensors Level Sensor

The Gems level sensor is one of the smallest electro-optic sensor in the range. It also carries the highest temperature capability of any of our optic sensors. Its polyethersulfone housing extends its compatibility and is very affordable in high volumes. This sensor is excellent for industrial OEMs preferring optics with high-temperature and small space requirements. It has a supply power of 12V.

Features and Benefits

Can be mounted in horizontal and vertical position
High chemical corrosion resistance
Resistance to product build-up
Output current sink 40mA, max up to 30VDC
Viton O-ring seal
Internal mount via M12x1-8

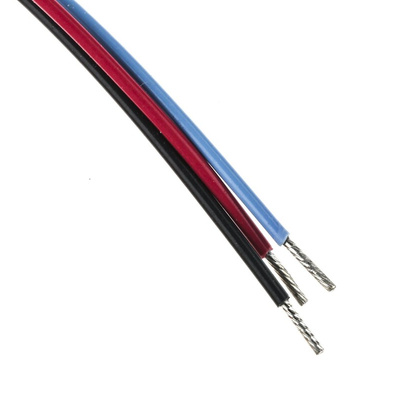

Lead length is 150mm

Applications

Coolant reservoir monitoring and warning
Medical diagnostic, sterilizer, washers and dialysis equipment
Low lubricant warning on machine tools, generator sets, on or off-highway vehicles
Low level warning in hydraulic reservoirs
Plastic over flow bottles, plastic radiators

Certifications

CE certified
EN 61000
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

ELS - 900 Range Sensor Data Sheet

ELS-900 Serirs Instruction Bulletin
