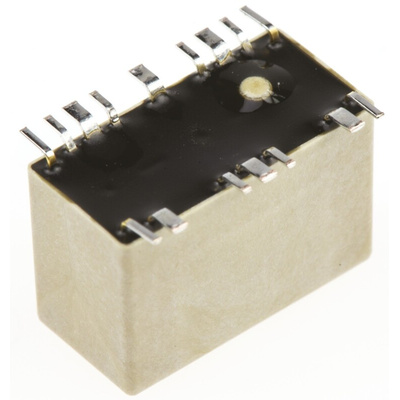

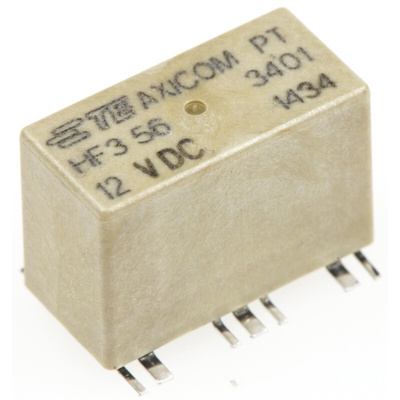

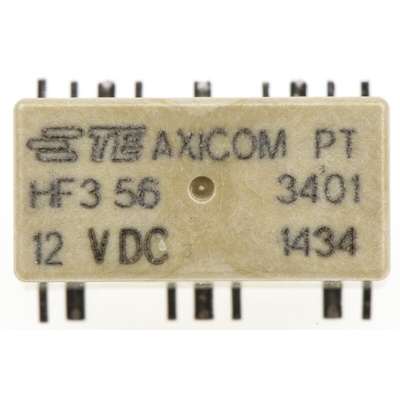

TE Connectivity RF Relay
The TE Connectivity HF3 series PCB mount SPDT high-frequency relay is actuated with 12VDC coil voltage at 3GHz frequency and ideal for 50ohms systems. This relay has a 1-pole SMT plastic-sealed configuration with a monostable or bistable coil.
Features and Benefits
Coil power is 140mW
Coil resistance is 1.028kohms
Contact material is gold -plated
Dimensions are 14.6mm x 7.2mm x 10mm
Frequency range is DC to 3GHz
Operating temperature ranging between -55°C and 85°C
Applications
Cable modems and line cards/CATV
Measurement and test equipment ATE
Satellite/audio/video tuners
Switching boards
Tabs
Wireless base stations and antennas
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
