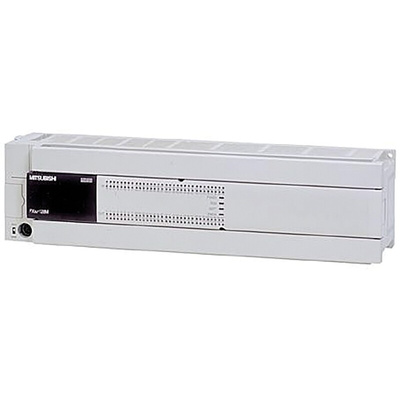

FX3U-128MR/ES, Mitsubishi FX3U Series Logic Module, 100 → 240 V ac Supply, Relay Output, 64-Input, Sink, Source Input, Логический модуль

Mitsubishi Electric Logic Module

The Mitsubishi FX3U series logic module has 64 inputs and 64 relay outputs with a contact rating of 8A. This DIN rail mount logic module has a screw termination method. It has a large memory for applications that require a large space. This logic module has a supply voltage that ranges between 100VAC and 240VAC.
Mitsubishi FX3U
FX3U CPU's are compatible with existing FX2N expansion modules as well as the new FX3U ADP expansion modules and may be used as a replacement for FX2N PLC's.

Features and Benefits

Expandable compact PLC
I/O,ADP & special function modules available adapter boards
Exchangeable interface & I/O
Fully compatible with the PROFIBUS/DP network and Ethernet
Integrated real-time clock
Versions with up to 256 inputs and outputs
Operating temperature ranges between 0°C and 50°C
High processing speed
64K steps battery-backed RAM memory
249 applied instructions, 7680 auxiliary relays, 512 timers, 251 counters and40768 data registers
0.065μs/basic instruction
Backward compatibility
Password access protection

Applications

Industrial sites
Factory automation

Certifications

CE
UL approved

PLC 100-240 VAC 64 DE 64 RA Hardware Manual

UN38.3 Lithium Battery Test Summary

Brochure - FX3U
