E3Z-LL86, Omron Background Suppression Distance Sensor, Block Sensor, 20 mm → 300 mm Detection Range, Фотоэлектрический датчик

E3Z Miniature Laser Sensors

The laser LED gives greater precision and longer sensing ranges, extending the range of applications whilst still maintaining a cost-effective solution. The class 1 (JIS & IEC) laser provides safety and peace of mind.

Ideal for detecting smaller targets
Class 1 Laser light sources– no worrying over safety concerns
Longer sensing ranges
Through beam: 60m range
Retro-reflective: 15m range
Background suppression (BGS): 300mm range
Excellent response with different target colours (diffuse type)
0.5mm spot size on BGS model
IP69K rated
Compact size

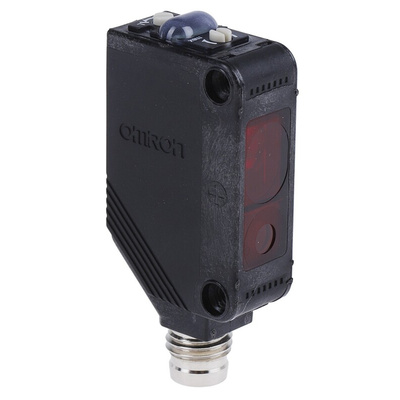

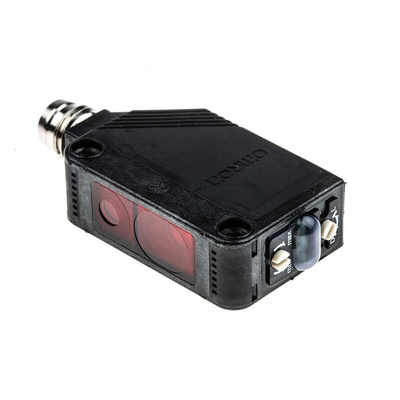

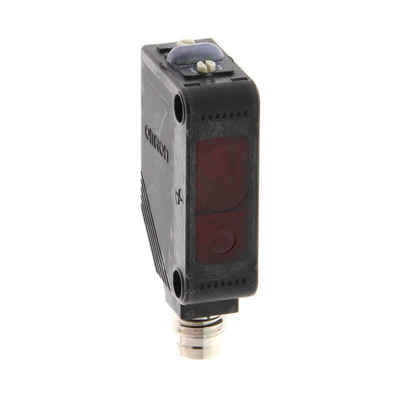

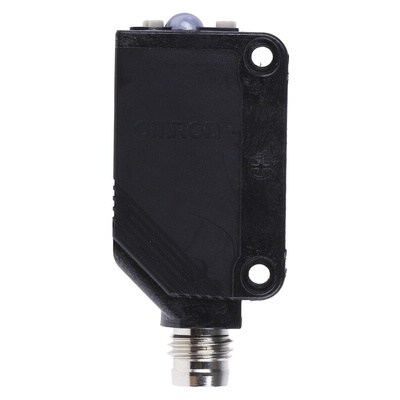

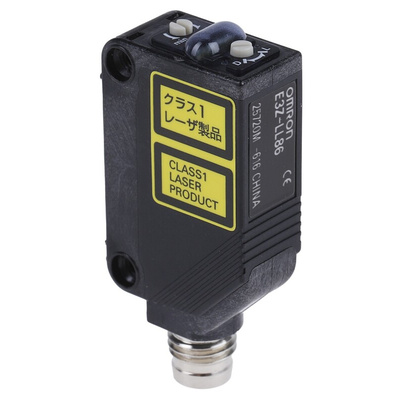

OMRON Distance Sensor, Photoelectric Type, PBT Housing - E3Z Series - E3Z-LL86

Things not quite lining up on your conveyor? Track objects in automated systems with laser precision courtesy of this distance sensor from OMRON. It features ultra-sensitive photoelectric technology that uses a high-powered laser LED to detect and measure the distance to your target. The automated alignment feature cuts down on optical axis deviation for needle-sharp accuracy, even with the smallest objects. A 1ms response time means you can be sure of near-instant results. Thanks to a standard M8 four-pin plug, you get a reliable electrical connection, even under vibration. This sensor's an adaptable option – choose your distance between 20 and 300mm.

Features & Benefits

• Class 1 laser keeps your eyes safe from radiation
• Colour-coded LED indicator lights show you operational status at a glance
• Waterproof design is rated IP67 for protection against damaging dust and moisture
• Compact dimensions of 31 (L) x 10.8 (W) x 20mm (D) means it fits easily where space is limited

Applications

• Food and drinks packaging
• Materials handling
• Logistics industry
• Transportation access gates

What conditions can I use this distance sensor in?

The sensor performs reliably in temperatures between -10°C and +55°C, making it well-suited to factory floors.
