Omron Touch-Screen HMI Display

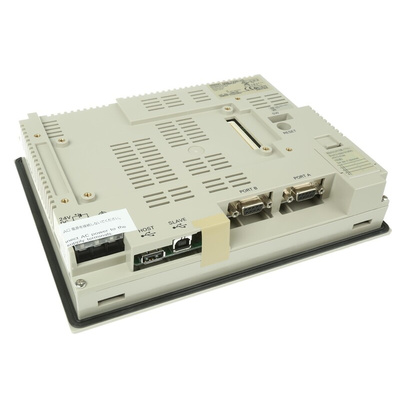

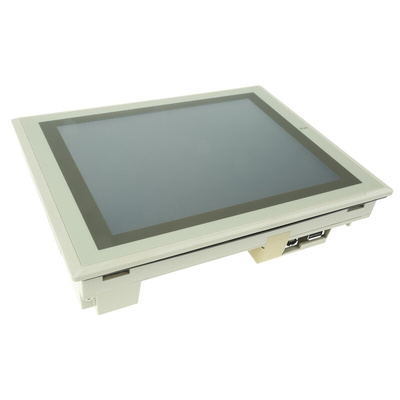

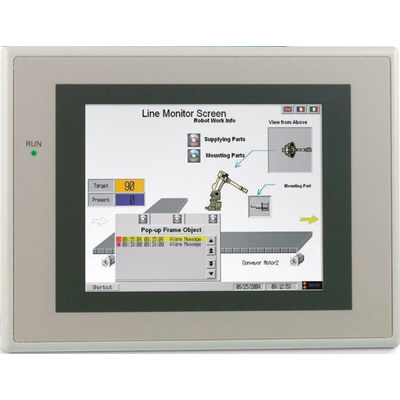

The Omron NS8 8.4inch ivory touch-screen HMI display that provides a graphical touch screen interface for systems and machines. It can be controlled by Omron PLCs via an RS-232C connection at up to 115Kbps that gives a high-speed response to system/machine events and user input. This display has 2 X RS232 ports. It is available in an ivory frame colour.

Features and Benefits

Programming via the USB port
Bright, high-definition TFT model
NS8 - 256 colours (32768 for . BMP/. JPG)
NS8 models feature a USB programming port (USB type B connector)
Standard objects supported includes alphanumeric data entry, analogue/level meters, bitmaps, trend graphs, animation, data log graphs (up to 160000 points), alarm event/history (5000 entries), and video display (video input supported by NS8 only, option card required)
Multi-language support (16 languages)
Compact flash slot used for software updates, data/alarm logging and recipe storage
Data can be stored in . CSV format
Backlight brightness adjustment 3 level
Resolution is 640x480pixels

Applications

Automation
Control panels
Manufacturing industry

Certifications

IP65 rated
