BEXBG05DPAC115AB1A1R/R, e2s BExBG05 Series Red Strobe Beacon, 115 V ac, Surface Mount, Xenon Bulb, IP67, Маячок

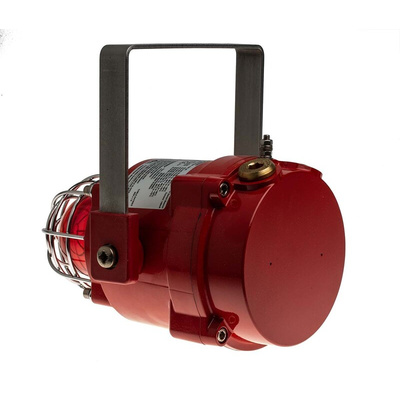

E2S BExBG05 Explosion Proof Xenon Beacon

E2S explosion proof BExBG05 series 5 Joule Xenon strobe beacons robust construction enables installation in the harsh environments. The enclosure is manufactured from corrosion proof, marine grade LM6 aluminium with a chromate and powder coat finish. Featuring two M20 cable entries, stainless steel lens guard, large cable termination area containing in & out terminals and an ingress protection of IP66/67. The BExBG05 beacons feature automatic synchronisation in multi-beacon systems.

Features and Benefits

• Marine grade, corrosion proof, LM6 aluminium enclosure


• Automatic synchronisation on multi-beacon system


• Xenon tubes mechanically secured against shock & vibration


• Glass lens & Stainless Steel guard


• 120 candela effective light intensity


• Beacons can be set to ’flip-flop’ alternating mode with other units on multi-beacon systems


• IP66/67 ingress protection


• Dual M20 cable entries


• Ratchet adjustable stainless steel ’U’ bracket for 360° positioning


• Operating temperature is between -25°C and +55°C

Approvals

• IECEx KEM 10.0002X


• ATEX KEMA 00ATEX2006X


• TR-CU Ex EAC certificate: RU C-GB.AA71.B.00109


• SIL 1 and SIL 2 compliant to IEC 61508 (2010)


• INMETRO certificate: 10-IEx-0010
