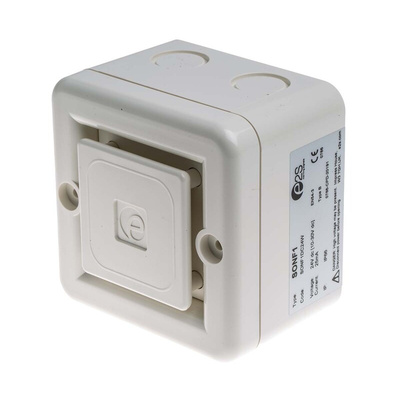

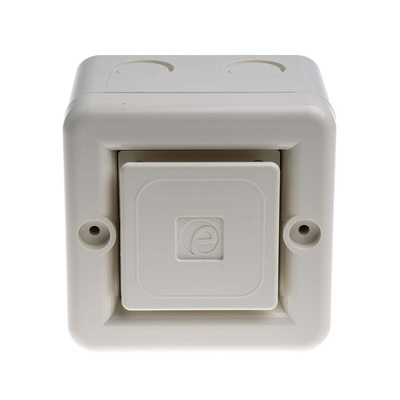

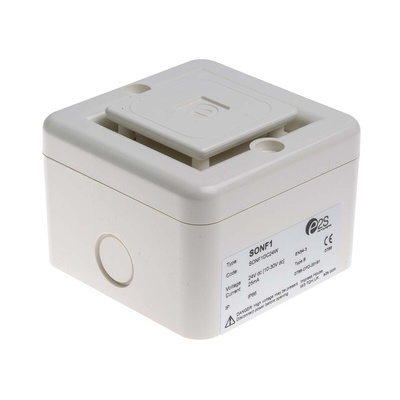

SONF1DC24W, e2s SONF1 Series Surface Mount Electronic Sounder, 10 → 30 V dc, 100dB at 1 m, IP66, DC, 10-Tone

e2s Sounder

The e2s Sounder is a high output low current siren with 10-tone alarm and sound output level up to 100dB at a distance of up to 1m. It works on a supply voltage of 10VDC to 30VDC. The sounder has a white body colour and is surface mount.

Features and Benefits

Automatic synchronisation on multi-sounder system
Very large termination area
die-cast LM6 aluminium alloy body with UL94V0 flame retardant ABS re-entrant horn
Stainless steel mounting brackets
Ratchet adjustable stainless steel ’U’ bracket
IN and OUT terminals
Programmable version available
45 alarm tones
4 remotely selectable stages
Any tone can be assigned to any stage
User configurable continuous frequency tone

Applications

Fire alarm
Security
Process Control

Certifications

VdS approved to EN54-3 (CPD 89/106/EEC)
UKOOA/PFEER compliant alarm tones
UL approved
GOST-R approved

SON F1 DC Instruction Sheet

SONF1 Datasheet
