AZM 161SK-12/12RK-024, Schmersal AZM 161 Series Solenoid Interlock Switch, Power to Unlock, 24V ac/dc, 4NC/2NO

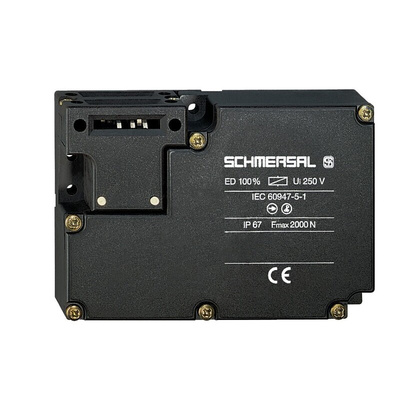

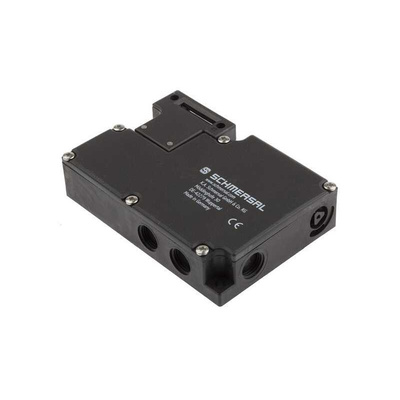

Schmersal Solenoid Interlock Switch with Power to Unlock Function, 24V AC/DC - AZM 161 Series - AZM 161SK-12/12RK-024

If you have guards or gates that need to be securely locked while dangerous processes are in operation, choose this solenoid interlock switch from Schmersal to do the job. It's been designed to work in conjunction with the control part of a machine to avoid situations where line operators could be at risk of injury. This device has four normally open safety contacts and two normally closed auxiliary contacts.

Features and Benefits

• IP (ingress protection) rating of 67 indicating dust-tightness and water-resistance
• Robust double-insulated thermoplastic enclosures with screw terminals for longer life

Application Information

• Heavy industry
• Manufacturing
• Robotics
• Rail industry and transportation applications

What are solenoid interlock switches used for?

Solenoid interlock switches are widely used in machinery where an interruption could cause damage. This kind of switch mechanism is crucial when operating machinery where the hazard continues even after the power supply to a device is stopped – for example, when using circular-saw blades. Solenoid interlock switches are also used where there's regular entry to dangerous areas, such as high-temperature or pressurised sites.

Approvals

BG, UL, CSA
