AZM415-11/11 ZPKE 24VAC/DC-M20, Schmersal AZM 415 Series Solenoid Interlock Switch, Power to Unlock, 24V ac/dc, Выключатель

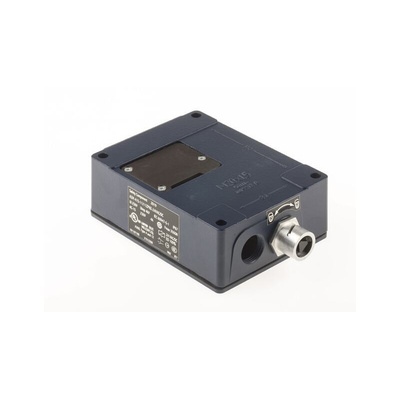

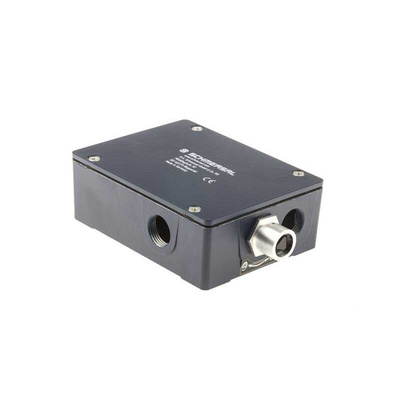

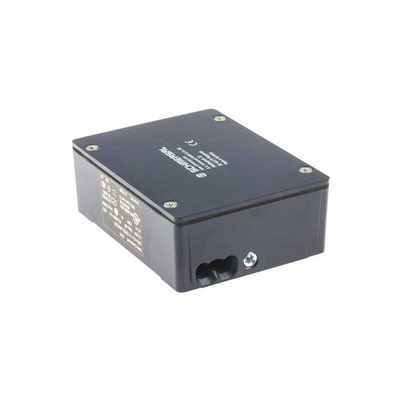

Schmersal Solenoid Interlock Switch with Power to Unlock Function, 24V AC/DC - AZM 415 Series - AZM415-11/11 ZPKE 24VAC/DC-M20

Reduce the risk of injury in your workplace with this solenoid interlock switch from Schmersal. It's designed to prevent the passing of current to machines when operating conditions aren't safe. To operate, it needs an internal solenoid to be energised before a guard can be opened and it remains locked until all equipment has stopped moving. This device has a supply voltage rating of 24V AC/DC and four contacts, consisting of two normally-closed safety contacts and two normally-open auxiliary contacts. It has a high holding force of 3,500N as well as an adjustable ball latch of 500N.

Features and Benefits

• IP (ingress protection) rating of 67 for a dust-tight and water-resistant seal
• Robust metal housing material ensures longevity
• Compact dimensions of 100 (length) x 130 (depth) x 46.5mm (width)

Application Information

• Pharmaceutical industry
• Food and beverage industries
• Material handling

How easy is it to use this interlock switch?

This switch uses a bell-crank system that ensures problem-free opening of stressed doors and has various manual and emergency releases available.

AZM 415 Data Sheet

Machine Guarding and Safety Range Overview

Instruction Sheet - AZM415-11/11 ZPKE 24VAC/DC-M20

Instruction Sheet - AZM415-11/11 ZPKE 24VAC/DC-M20
