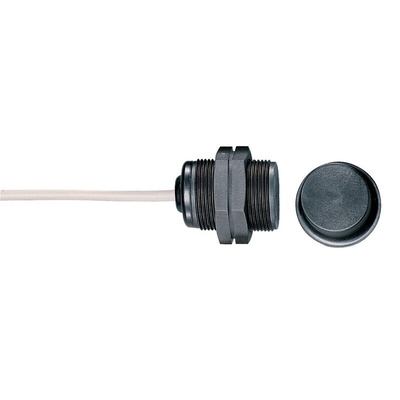

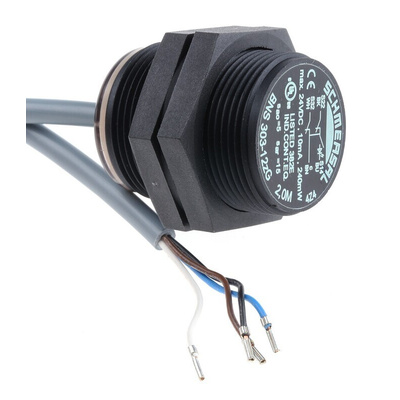

BNS 303-12ZG 2,0M, Schmersal BNS303 Series Flush Magnetic Non-Contact Safety Switch, 24V dc, Plastic Housing, 2, Cable, Выключатель

BNS 303, Coded, Barrel

Control category up to 3 to EN954-1
Output function indicated at rear of switch by LED
IP67 protection\t
Suitable for food industry if using BPS303 magnet
Dimensions: L 44mm x W 45mm

Note

Actuating magnet not included

Caution

EN60947-5-3 standard is only met if entire system consisting of safety sensor (BNS303), magnet (BPS) and a safety monitoring module (AES) is used.

Standards

IEC/EN60947-5-3, BG-GS-ET-14, EN1088

Approvals

BG, UL, CSA

Schmersal Magnetic Non-Contact Safety Switch, 24V DC, 2m Cable Length - BNS303 Series - BNS 303-12ZG 2,0M

For improved safety in your industrial environments, choose this non-contact safety switch from Schmersal. This component consists of a sensor and uses a magnetic actuator for object detection, reducing the risk of mechanical wear. Its glass fibre-reinforced thermoplastic housing provides excellent impact and heat resistance, so it's robust enough to be used in harsh conditions. It's compatible with Schmersal's food-safe BPS 303 magnet (617-5330) for use in food processing areas.

Features & Benefits

• Compact dimensions of 44 (length) x 30mm (diameter) for use in areas where space is limited
• IP67 (ingress protection) rating means it's protected against dust and immersion in 1m of water for up to 30 minutes
• UL (Underwriters' Laboratories) approved for flame resistance in the event of a fire
• Meets IEC/EN60947-5-3 (International Electrotechnical Commission/European Norm) standards for low-voltage switchgear and control gear

Applications

• Food processing and packaging industries
• Chemical processing facilities
• Conveyors

Can I use this switch in cold or high-heat environments?

This safety switch can operate within a wide temperature range of -25°C to +70°C, making it suitable for use in demanding conditions.

Note

Actuating magnet not included, see accessories\t\t\t\t\t\t\t\t

Approvals

BG, UL, CSA

Caution
type":"Caution",

EN60947-5-3 standard is only met if entire system consisting of safety sensor (BNS303), magnet (BPS) and a safety monitoring module (AES) is used.\t\t\t\t\t\t\t\t

Standards

IEC/EN60947-5-3, BG-GS-ET-14, EN1088\t\t\t\t\t\t\t\t
