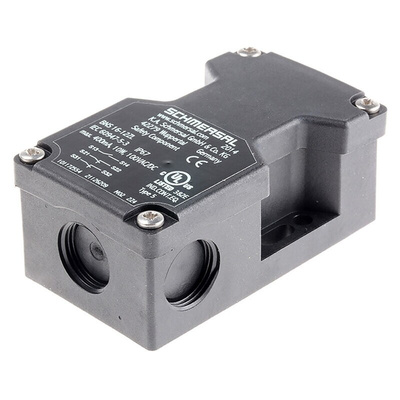

BNS 16-12ZL, Schmersal BNS16 Series Magnetic Non-Contact Safety Switch, 100V ac/dc, Plastic Housing, M20, Выключатель

BNS 16, Coded

Mounting dimensions identical to best-selling AZ16
3 cable entries M20 x 1.5
IP67 protection
Control category up to 4 to EN954-1
Suitable for food processing industry
Dimensions: L39 x W52 x H90 mm

Note

Actuating magnet not included

Caution

EN60947-5-3 standard is only met if entire system consisting of safety sensor (BNS16), magnet (BPS16) and a safety monitoring module (AES) is used.

Standards

IEC/EN60947-5-3, BG-GS-ET-14, EN1088

Approvals

BG, UL, CSA

Schmersal Magnetic Non-Contact Safety Switch, M20, 100V AC/DC Voltage Rating - BNS16 Series - BNS 16-12ZL

Prevent unsafe access to running equipment with this non-contact safety switch from Schmersal. This sensor is designed to stop your machine once a guard door is opened, helping to prevent injury and machine damage. Its glass fibre-reinforced thermoplastic housing material provides resistance to impact and abrasion, so you can use it in harsh conditions. This material is also a good insulator to help protect you against electric shock. Thanks to its maximum switching current of 400mA, it's an energy-efficient choice.

Features & Benefits

• IP67 rating indicates that it's dust-tight and protected against immersion in up to 1m of water for 30 minutes
• Broad operating temperature range of -25°C to +70ºC for use in demanding environments
• Adheres to IEC 60947-5-3 standards for fault performance of proximity sensors
• Non-contact design minimises wear for an enhanced service life

Applications

• Material handling equipment
• Chemical processing plants
• Marine industry

Is this switch flame-resistant?

This switch's glass fibre-reinforced thermoplastic body is self-extinguishing, so it helps to prevent the spread of flames in the event of a fire for increased safety.

Note

Actuating magnet not included, see accessories

Approvals

BG, UL, CSA

Caution
type":"Caution",

EN60947-5-3 standard is only met if entire system consisting of safety sensor (BNS16), magnet (BPS16) and a safety monitoring module (AES) is used.

Standards

IEC/EN60947-5-3, BG-GS-ET-14, EN1088
