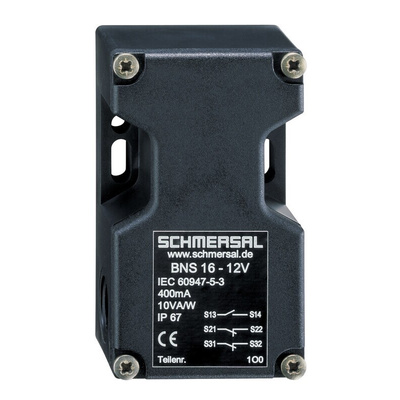

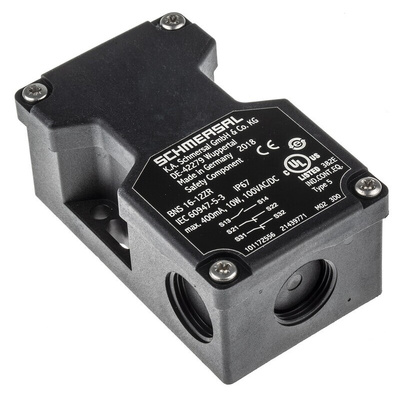

BNS 16-12ZR, Schmersal BNS16 Series Magnetic Non-Contact Safety Switch, 100V ac/dc, Plastic Housing, M20, Выключатель

BNS 16, Coded

Mounting dimensions identical to best-selling AZ16
3 cable entries M20 x 1.5
IP67 protection
Control category up to 4 to EN954-1
Suitable for food processing industry
Dimensions: L39 x W52 x H90 mm

Note

Actuating magnet not included

Caution

EN60947-5-3 standard is only met if entire system consisting of safety sensor (BNS16), magnet (BPS16) and a safety monitoring module (AES) is used.

Standards

IEC/EN60947-5-3, BG-GS-ET-14, EN1088

Approvals

BG, UL, CSA

Schmersal Magnetic Non-Contact Safety Switch, 400mA, M20 - BNS16 Series - BNS 16-12ZR

For improved safety of your heavy-duty equipment, choose this non-contact safety switch from Schmersal. The device stops your machine when its guard doors are open, preventing unsafe contact with moving parts. Thanks to its maximum switching current of 400mA, this safety switch is energy-efficient. Its glass fibre-reinforced thermoplastic body is durable and resistant to heat and impact, making it suitable for use in harsh environments. This material is also self-extinguishing, so it will stop burning within a short period of time for added safety in the event of a fire.

Features & Benefits

• Switch is insensitive to transverse misalignments for greater ease of installation
• IP67 rating for protection against dust and immersion in up to 1m of water for 30 minutes
• Wide operating temperature range of -25° to +70ºC for use in demanding environments
• Includes a wiring compartment for protection and organisation of cables

Applications

• Construction industry
• Steel manufacturing plants

What's the voltage rating of this switch?

This switch has a voltage rating of 100V AC/DC, making it suitable for use in low-power applications.

Note

Actuating magnet not included, see accessories

Approvals

BG, UL, CSA

Caution
type":"Caution",

EN60947-5-3 standard is only met if entire system consisting of safety sensor (BNS16), magnet (BPS16) and a safety monitoring module (AES) is used.

Standards

IEC/EN60947-5-3, BG-GS-ET-14, EN1088
