BNS16 12ZV, Schmersal BNS16 Series Magnetic Safety Switch, 100V ac/dc, Plastic Housing, 2NO/NC, M12, Выключатель

Schmersal Magnetic Safety Switch, 100V AC/DC, M12 - BNS16 Series - BNS16 12ZV

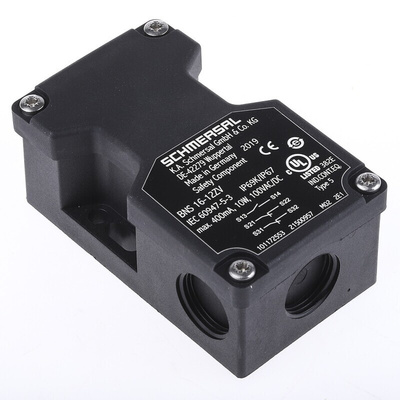

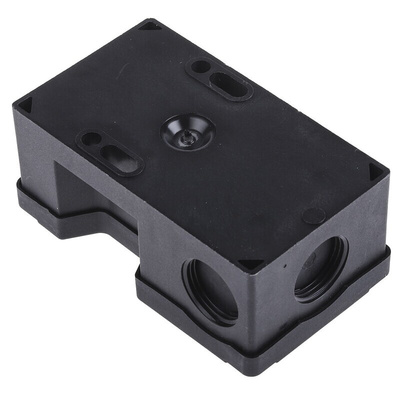

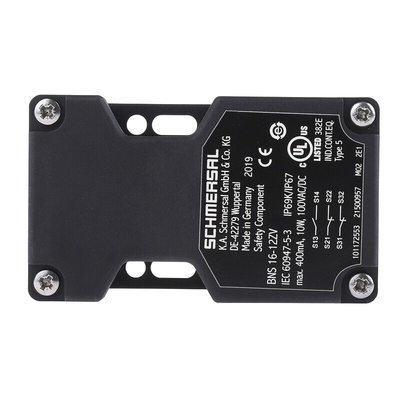

This Schmersal non-contact safety switch turns one contact on and two contacts off when it detects the position of a magnetic actuator. It has a switch ON distance of 8mm and switch OFF distance of 18mm. Connections are made using an eight-pin M12 connector. The black thermoplastic enclosure is glass fibre-reinforced and has an IP67 (ingress protection) rating, indicating it's protected from dust and water. It can be mounted in a concealed position and is insensitive to transverse misalignment. The actuator (617-5346) is available separately.

Features and Benefits

• Switching voltage of maximum 100V AC/DC for a wide range of control applications
• Switching current of up to 400mA and switching capacity of 10W for use where slightly more capacity than other switches is required

Application Information

• Food processing
• Security systems
• Access panels
• Assembly lines

What does an IP67 rating mean?

The first number represents a device's ingress protection against solid materials, while the second number represents liquid ingress. A rating of 67 means that the unit is totally protected against dust and can tolerate being immersed in up to one metre of liquid for 30 minutes.

Approvals

BG, UL, CSA

BNS 16 Data Sheet

Machine Guarding and Safety Range Overview

Datasheet

Instruction Sheet - BNS16 12ZV
