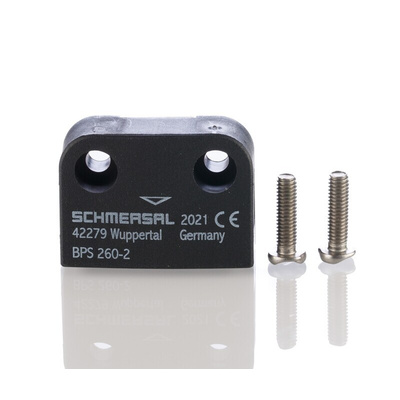

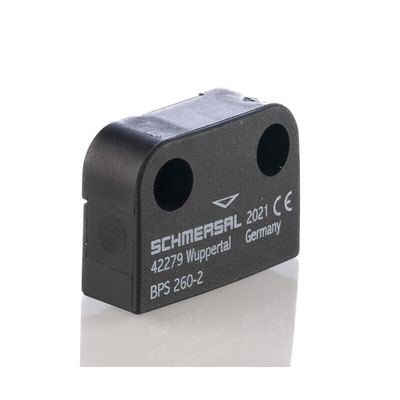

BPS 260-2, Schmersal Non-Contact Safety Switch, Plastic Housing

BNS 260, Miniature Coded

Smallest design
Actuation only possible with BPS260, available separately
Left-hand or right-hand side versions for door-mounting
Control category up to 4 to EN954-1
IP67 protection\t
Connector 8 mm, 6-pole, latching interlocking
Dimensions: L13 x W26 x H36 mm

Note

Actuating magnet not included, see accessories, for example 617-5374//617-5380

Caution

EN60947-5-3 standard is only met if entire system consisting of safety sensor (BNS260), magnet (BPS260) and a safety monitoring module (AES) is used.

Standards

IEC/EN60947-5-3, BG-GS-ET-14

Schmersal Non-Contact Safety Switch, 13mm Depth, 36mm Length - BPS 260-2

Use this safety switch from Schmersal to efficiently improve workplace safety in industrial environments. It's designed to be used on movable machine guards and articulating robot arms. The reed switch works with a magnetic actuator to stop the machine when guard doors are opened to prevent accidental contact with hazardous parts.
This component has a fibreglass-reinforced thermoplastic housing that offers excellent durability and corrosion resistance, making it suitable for use in most industrial environments. It also has an IP67 (ingress protection) rating, so it can withstand dust and temporary immersion in water for use in wet and humid environments.

Features & Benefits

• Tamper-resistant to prevent overriding with simple magnets
• Wide operating temperature range of -25°C to 70°C for use in harsh environments
• Light-emitting diode (LED) indicators for simple identification of switch status
• Compact dimensions of 36 (length) x 26 (width) x 13mm (depth) for space efficiency in small enclosures

Applications

• Woodworking machinery
• Robot arm rest position sensing
• Food processing equipment

Is this switch energy-efficient?

This switch has a low current consumption of just 10mA, making it an energy-efficient choice.

Machine Guarding and Safety Range Overview

Datasheet

BPS 260-2 Datasheet
