SLP16D/RS, Eaton, SLP Surge Suppressor Unit 18 V Maximum Voltage Rating 20kA Maximum Surge Current Signal & Data Line Protector

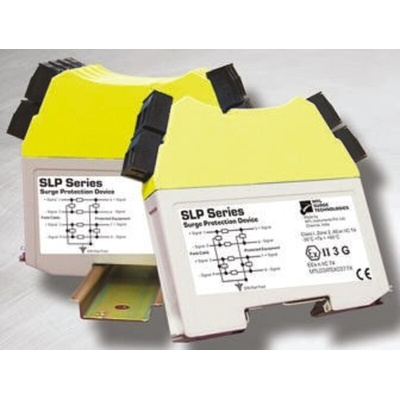

Eaton MTL Ultra Slim Two Loop Surge Protector - SLP Series

The SLP series of surge protector units from Eaton MTL Crouse-Hinds has an ultra-slim design for protecting electrical equipment against surges on control loop cabling. The SLP surge protection devices use a hybrid protection circuit, combining sold state electronics and a gas filled discharge tube (GDT). This combination is designed for exceptionally low line resistance and adds only a small voltage drop to the system whilst providing surge protection up to 20kA.

Features and Benefits

• Protection for two loops per SLP, or a single four-wire circuit
• Multi-stage hybrid protection circuit up to 20kA maximum surge current
• Range of voltage ratings to suit all process I/O applications
• Designed for high bandwidth, low resistance applications
• ATEX Certified

Certificate No.

ATEX0377X

Group and Category

EEx N IIC T4

Note

Eaton formerly known as MTL

Surge Protection Devices, SPDs (DIN-rail)

Voltage surges, often referred to as spikes or transients are typically caused by switching of fluorescent lights, fuses blowing or nearby lightning activity. The worst voltage spikes are usually caused by lightning strikes and can reach up to 6000V, with current surges of over 3000A. The maximum size of the let-through voltage and current inrush depends on the location within the building's wiring system. BS7671: 2011 Amendment 1 Sections 443 and 534 cover risk assessment and provides guidance on protection of electronic equipment for installation engineers to follow. The fullest information on lightning and surge protection comes from the BSEN 62305 series of standards.
