540100, Pilz PSENmag Magnetic Safety Switch, Plastic, 24 V dc, Выключатель

Pilz Non-contact Switch

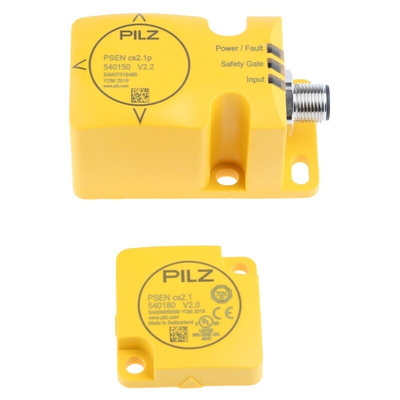

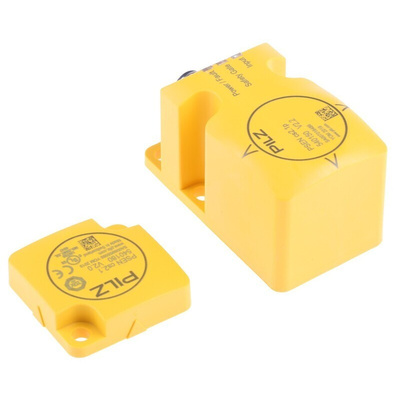

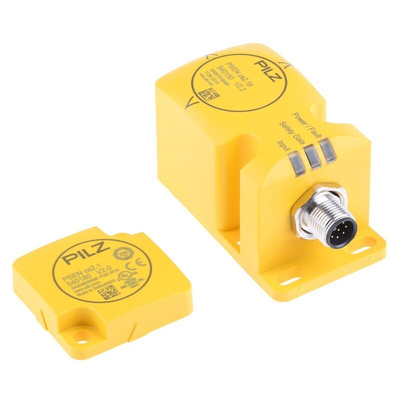

The Pilz PSENcode series non-contact safety switch has an assured switching distance of 15mm. It has 2OSSD RFIDsafety outputs. It is coded and the only switch with an actuator from the PSEN cs3.1 series.
Supplied with:
Actuator
Caution:
EN60947-5-3 standard is only met if the entire system consisting of a safety switch (PSENcode), an actuator (PSENcode) and a safety-monitoring module (PNOZ X or PNOZmulti) is used.
Note:
When the safety gate is closed the switch provides 2 N/C semiconductor outputs.

Features and Benefits

Input The supply voltage is 24VDC
4 directions of actuation
Fully coded
Series connection -You can connect more than 10 safety switches in a sequence to Cat 4 of EN954-1
Unique assignment of the switch and its actuator Five directions of actuation
Connection type is M12, 8-pin male
Housing material is plastic
Operating temperature ranges between -25°C and 70°C

Applications

Industrial environment

Certifications

IP67 rated
EN 60947-5-3
EN 62061 SIL CL 3
EN ISO 13849-1
PLe Cat. 4
EN ISO14119
CE certified
UL approved
TÜV certified
BG certified
CCC certified
FCC certified
IC certified

Approvals

BG, cUL, CCC
