PSENcode Large Non-Contact Safety Switch, Hazardous Area

The PSEN cs1.1p safety switch (stock no. 918-6689) is coded and switches with an actuator from the PSEN cs1.1 series. There is no restriction on the number of times the actuator can be used and reset.

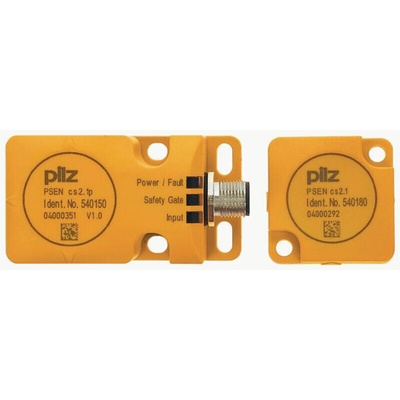

The PSEN cs2.13p safety switch (stock no. 619-2795) is fully coded and switches with an actuator from the PSEN cs2.1 series. These actuators must be taught. It can be taught up to a maximum of 8 times but only 1 actuator at a time is taught.

Features and Benefits

Series connection, more than 10 safety switches in sequence to Cat 4 of EN954-1
Switch reacts to a single actuator but can be taught a new actuator up to 8 times
5 directions of actuation
M12 connection, 8-pin
For use in EX area Category 3, Zones 2 and 22 in accordance with EN50021
IP67 protection

Note

When the safety gate is closed the switch provides 2 N/C semiconductor outputs.

Caution

EN60947-5-3 standard is only met if entire system consisting of safety switch (PSENcode), actuator (PSENcode) and a safety monitoring module (PNOZ X or PNOZmulti) is used.

Standards

EN954-1 (Cat 4), EN60204-1, EN60947-5-3.

Group and Category

II 3GD EEx nC IIC T6; TUV

Certificate No.

EX8 04 11 20132 014

Approvals

CE, cULus Listed, ATEX, TÜV, FCC, IC, ECOLAB.

Supplied with

Actuator

Caution
type":"Caution",

EN60947-5-3 standard is only met if entire system consisting of safety switch (PSENcode), actuator (PSENcode) and a safety monitoring module (PNOZ X or PNOZmulti) is used

Approvals

BG, cUL, CCC, TUV, ATEX
