505220, Pilz PSENmag Series Magnetic Non-Contact Safety Switch, 24V dc, Plastic Housing, 2NO, M8, Выключатель

Pilz Non-contact Switch

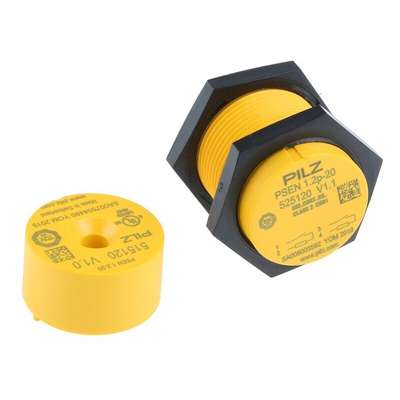

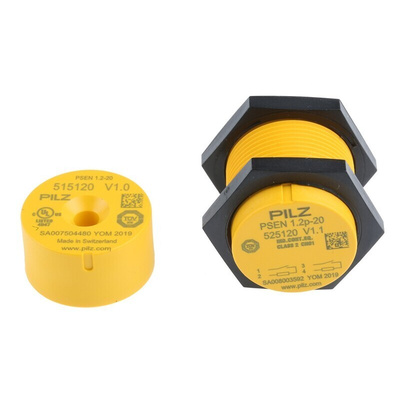

The Pilz PSENmag series non-contact safety switch has an assured switching distance of 8mm with round M30 design. It has 2NO safety contacts. It meets the highest safety requirements and offers a complete solution that is safe and economical.
Supplied with actuator
Caution:
EN60947-5-3 standard is only met if the entire system consisting of a safety switch (PSENmag), an actuator (PSENmag) and a safety-monitoring module (PNOZ X) is used.

Features and Benefits

Input The supply voltage is 24VDC
Connected via a plug connection or with cable
Flexible cable outlet, including connector, so there is no need for an angled connector
Flexible mounting, both the sensor and actuator support every conceivable mounting configuration
Cost effective because of the series connection
Operating distance of 3mm or 10mm
Extra signal contact
Connection type is M8, 4-pin male
Housing material is PBT
Operating temperature ranges between -10°C and 55°C

Applications

Heavy soiling

Certifications

IP65 rated
IP67 rated
EN954-1 (Cat 4)
EN60204-1
EN60947-5-3
CE certified
UL approved
TÜV certified
BG certified
CCC certified

Approvals

BG, cUL, CCC
